900KSUN5024F

900KSUN5024F

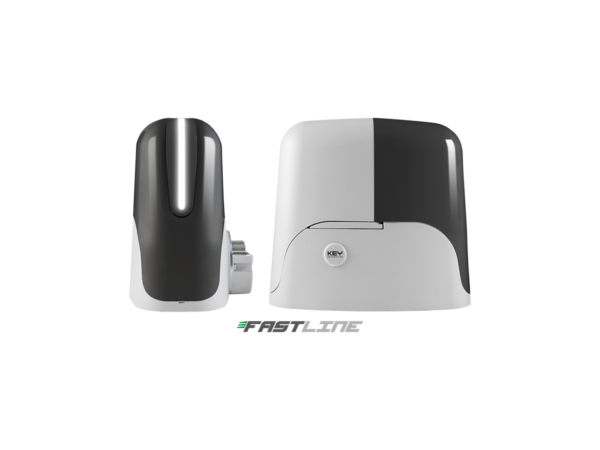

Kit SUN for sliding gates up to 500 kg, FAST, 24 Vdc motor. Control unit 14AF with Night Light function included. Magnetic limit switch. Includes 2 remotes, RX4 plug in receiver and 4 m heavy duty 6 lugs gear rack.
Product code KSUN5024F
Speed 40 cm/s
Control unit 14AF
Nominal power 300 W
Max leaf weight 500 kg

Description

Kit SUN for sliding gates up to 500 kg, FAST, 24 Vdc motor. Control unit 14AF with Night Light function included. Magnetic limit switch.
Includes 2 remotes, RX4 plug in receiver and 4 m heavy duty 6 lugs gear rack.

Reviews

There are no reviews yet.

Be the first to review “900KSUN5024F”

Accessories

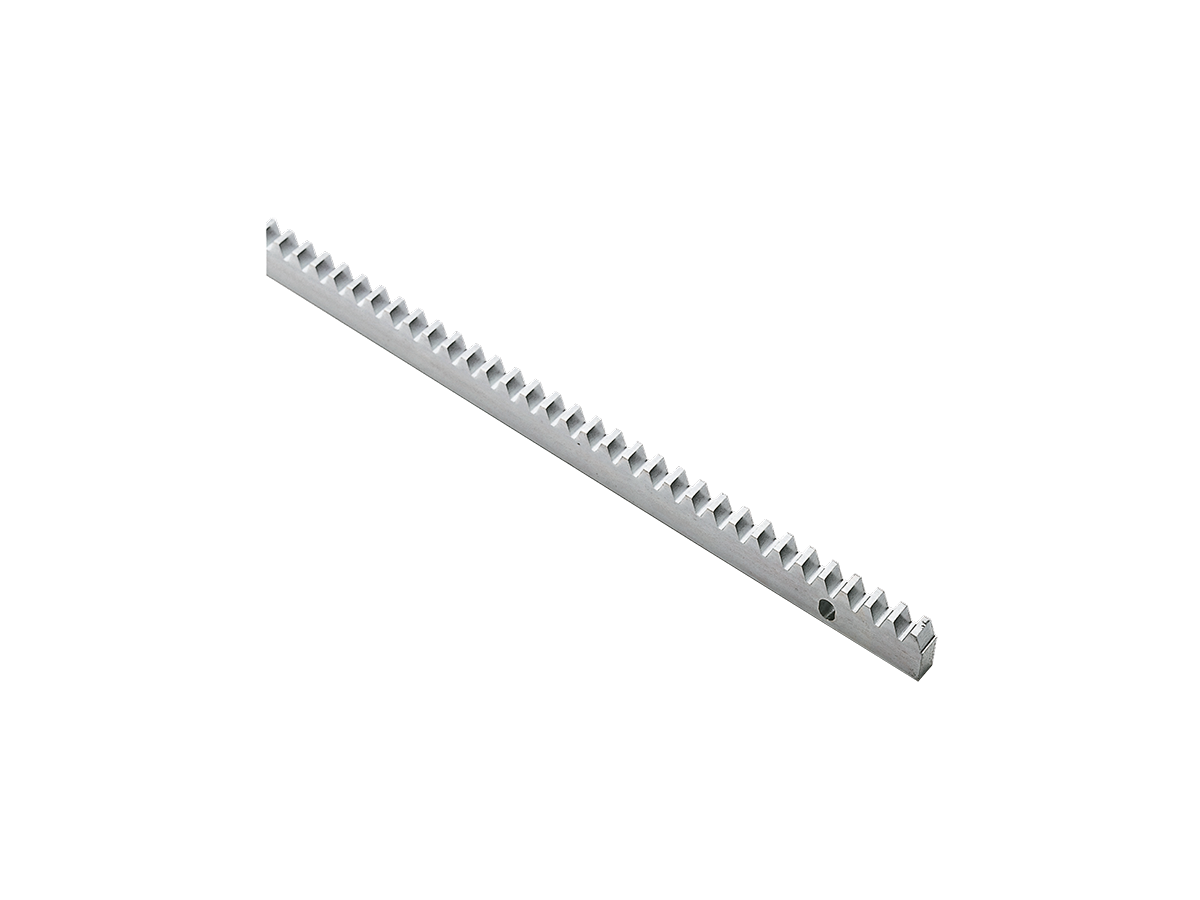

M4 zinc coated rack 30x12 mm L=1000 mm

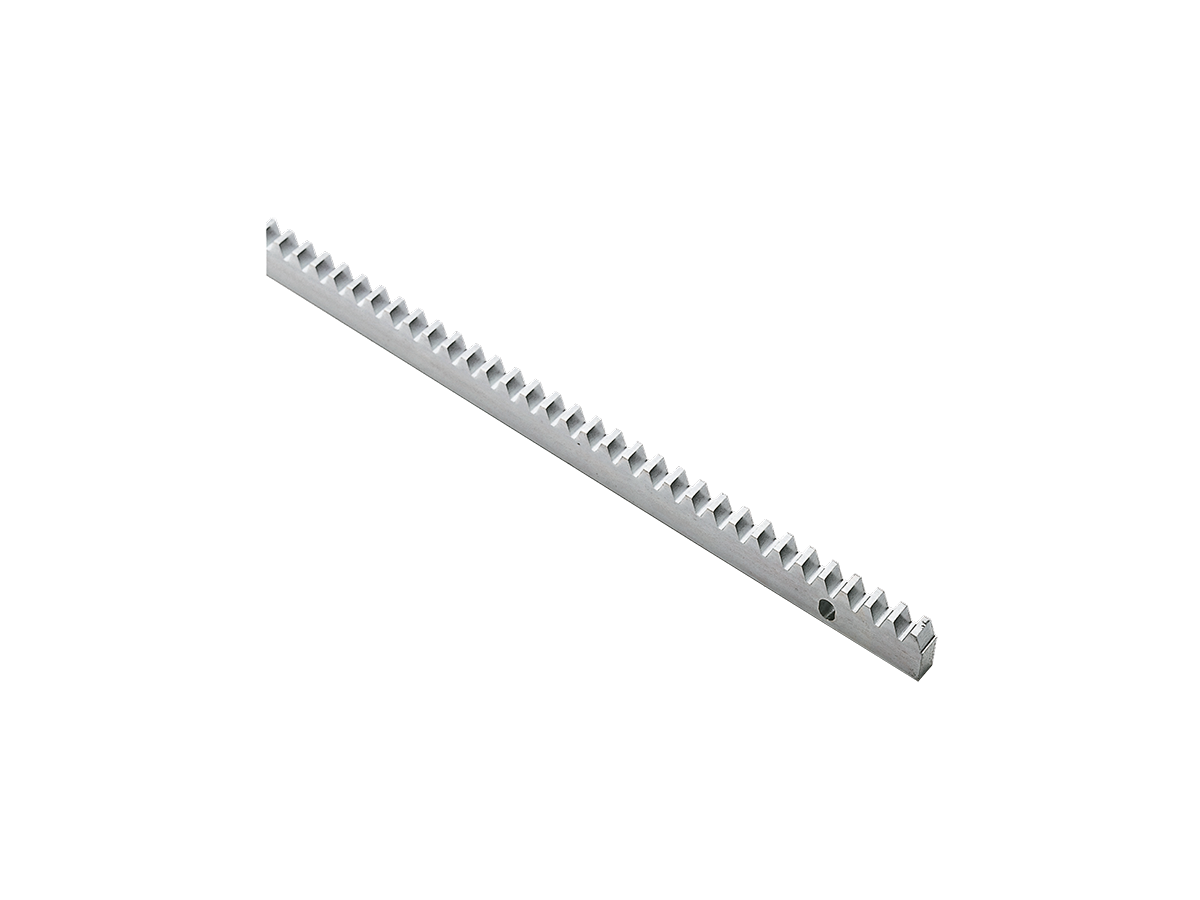

M4 zinc coated rack 30x8 mm L=1000 mm

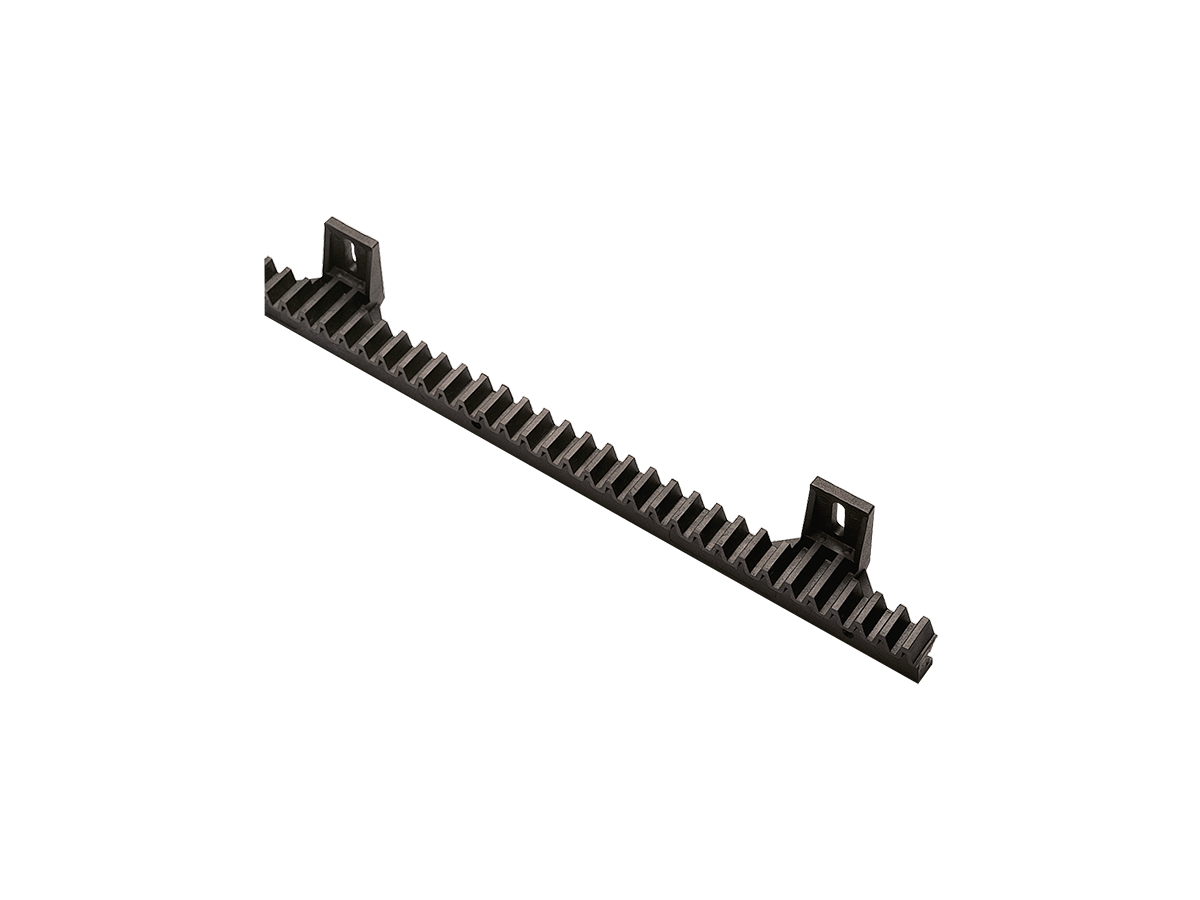

M4 nylon rack L=1000 mm up to 800 Kg
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for SUN5024F
24V/10A power module
Display module cable length 120cm
Module for automation control from smartphone, for 14A and HALO
Module for automation control from smartphone, for 14A and HALO
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
2-channel universal receiver, fix or rolling code, 1000 codes memory
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Led garden light, RAL 7016 grey colour. H= 240 mm
Kit of 1.3 Ah lead battery and battery charger
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)

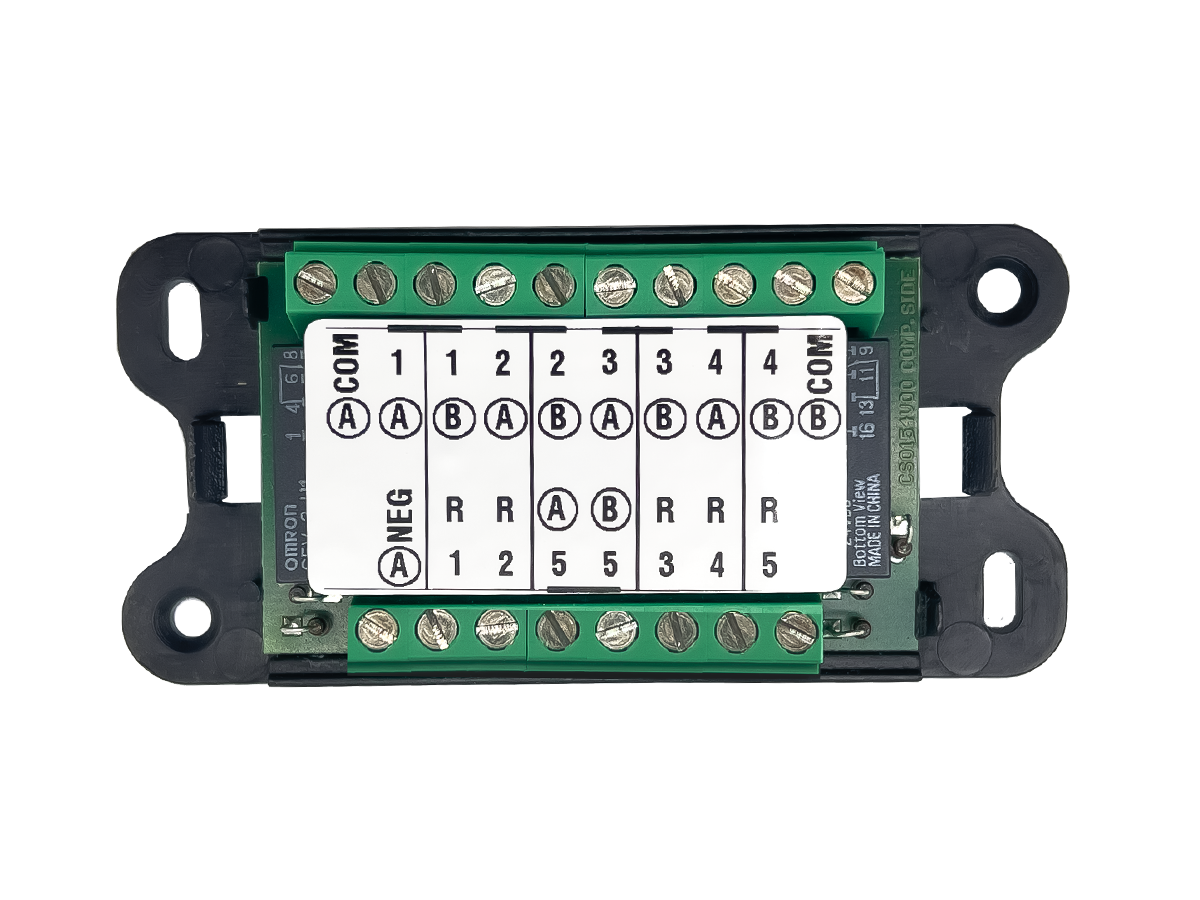

Interface for master/slave function
Support post h. 100 cm
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 50 cm
Low voltage box
Spare M4 Z18 Gear for TURBO zinc plated

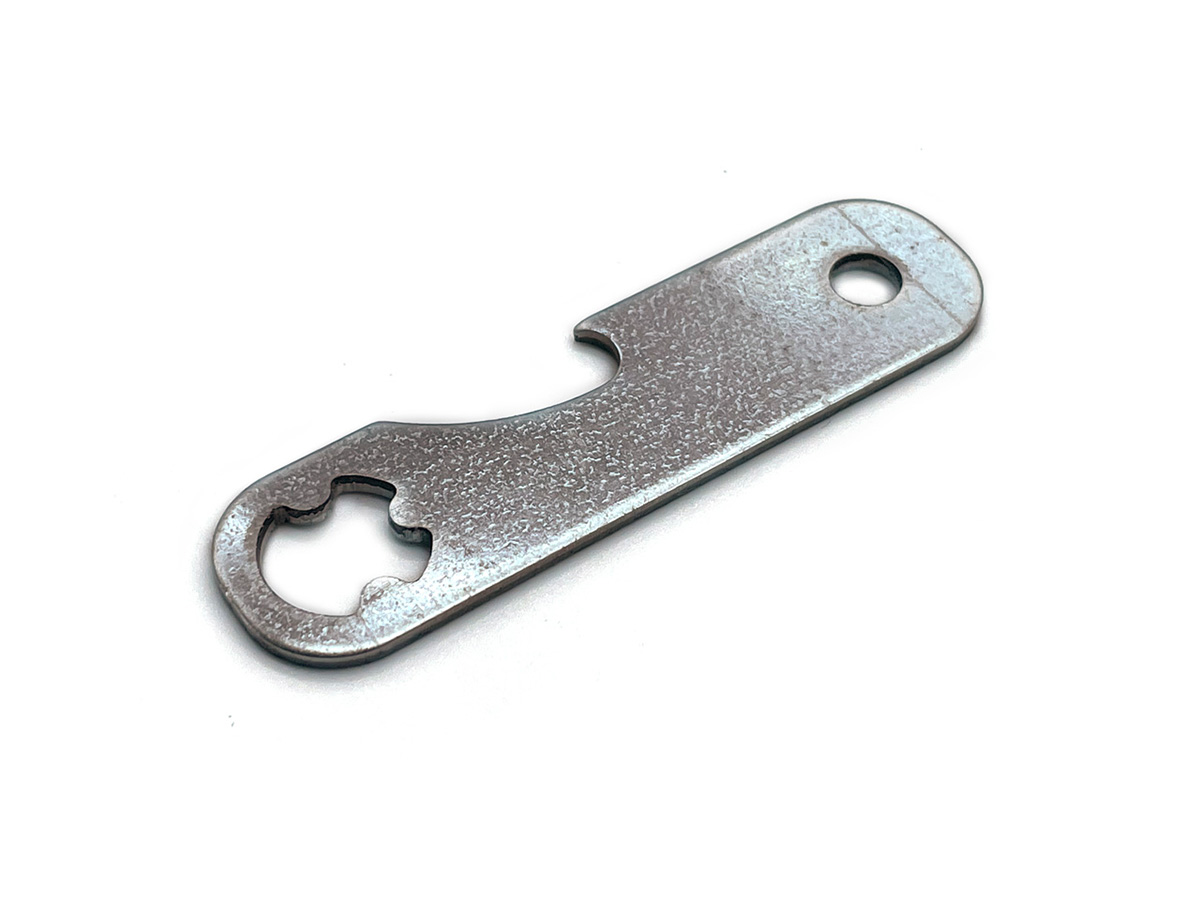

Spare SUN/RAY/REVO unlock key

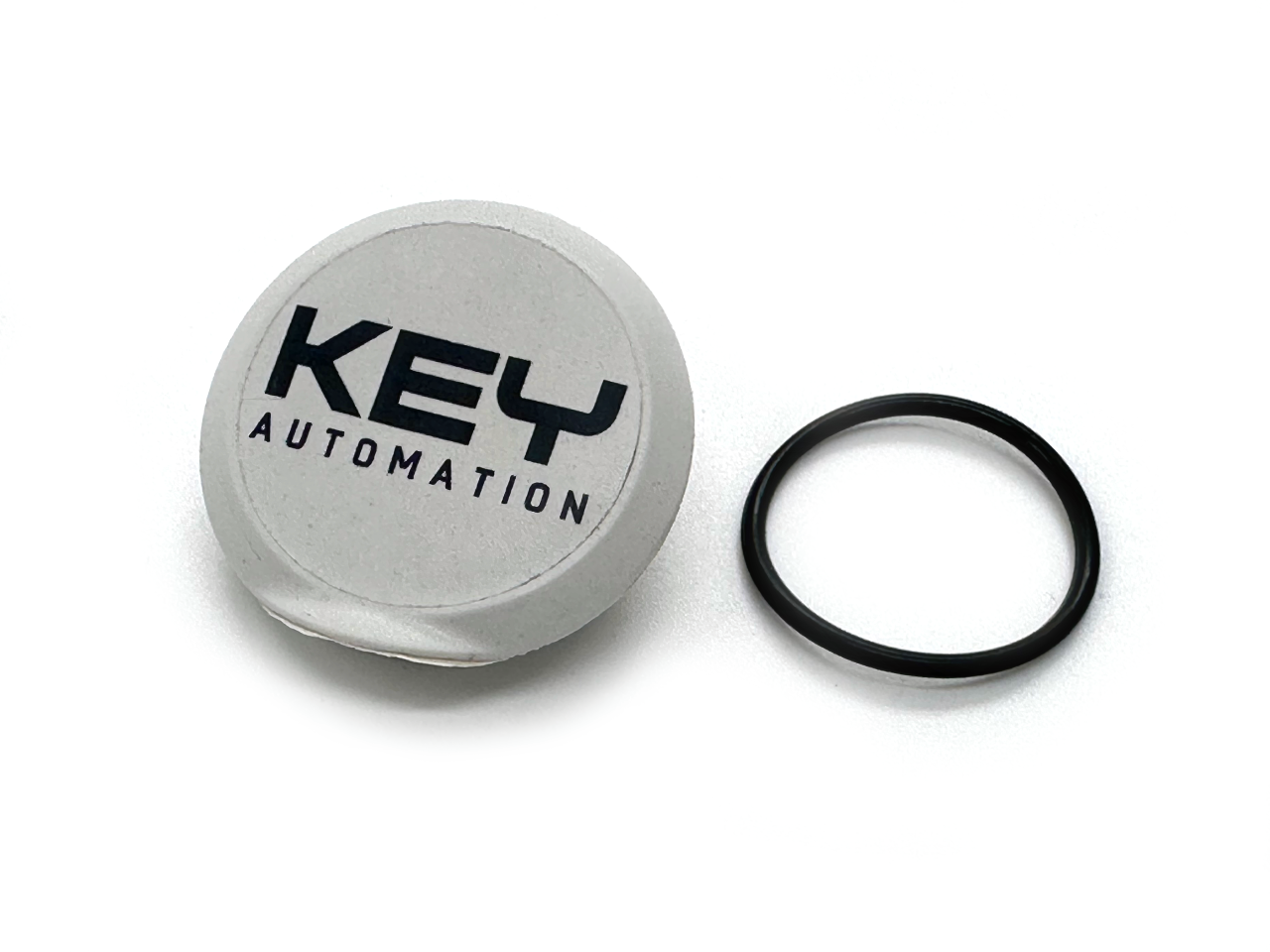

Spare SUN/REVO unlock Rubber cap

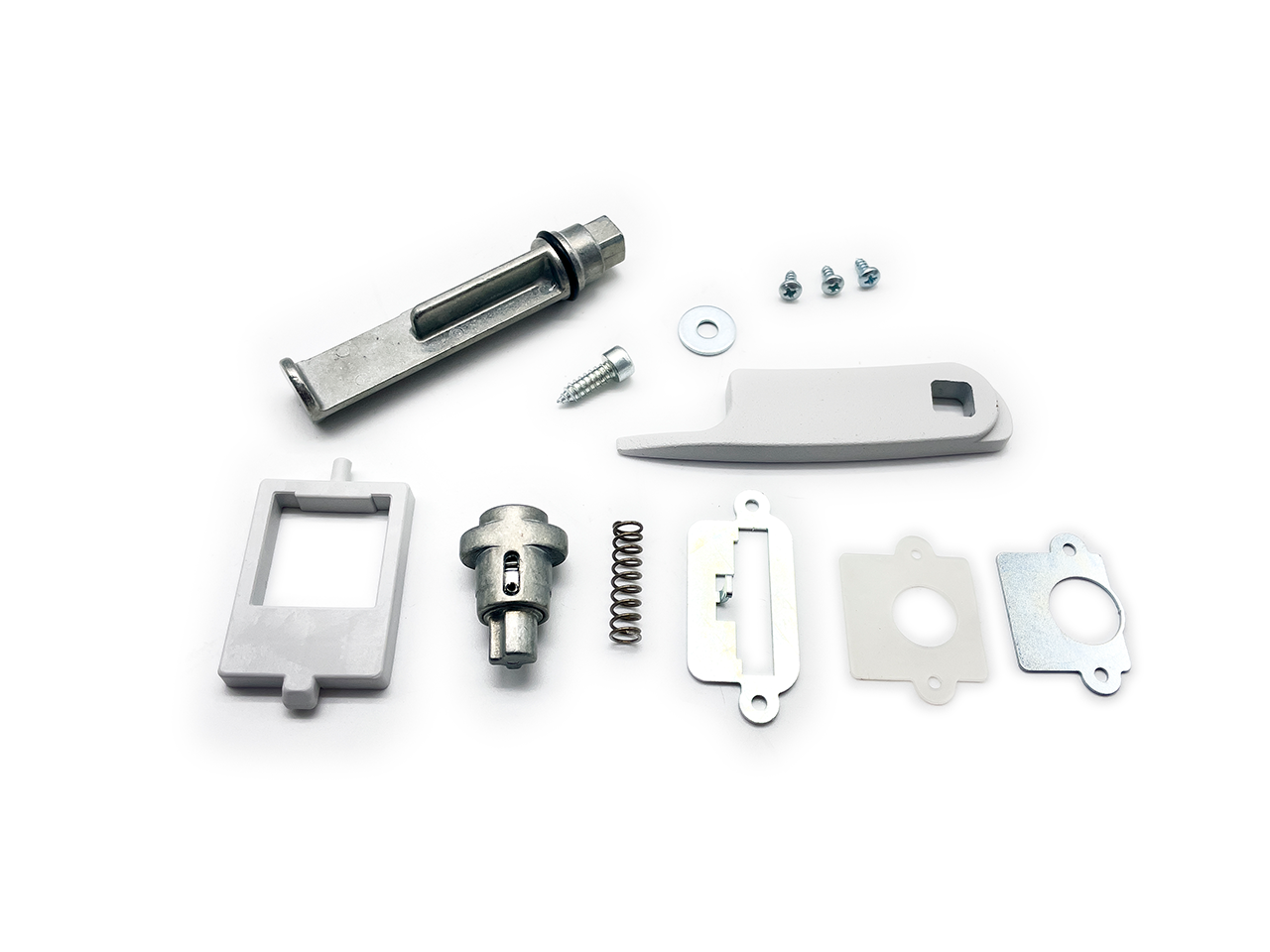

Spare SUN unlock group

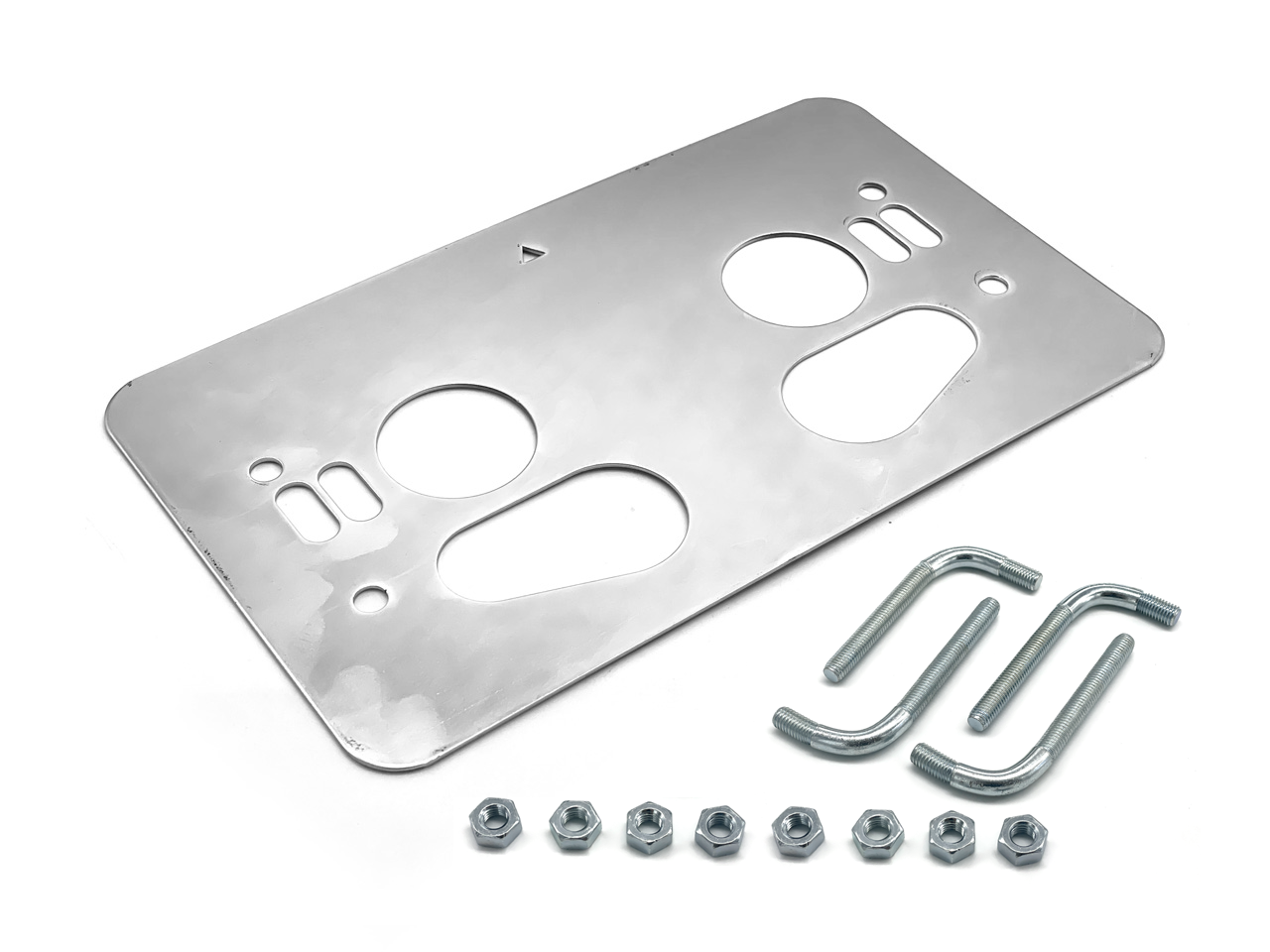

Spare SUN fixing plate with rag bolts

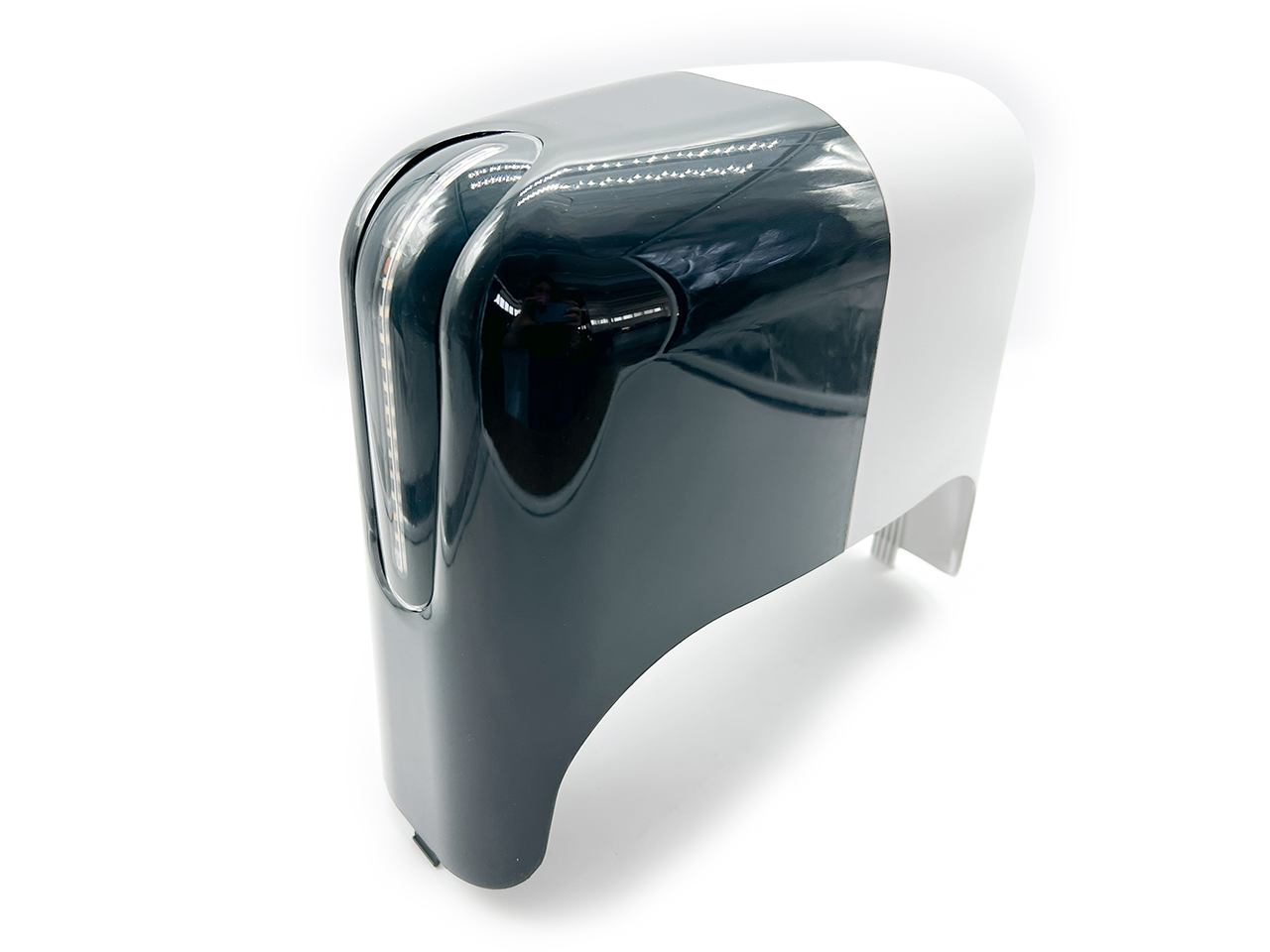

Spare SUN cover with NLS

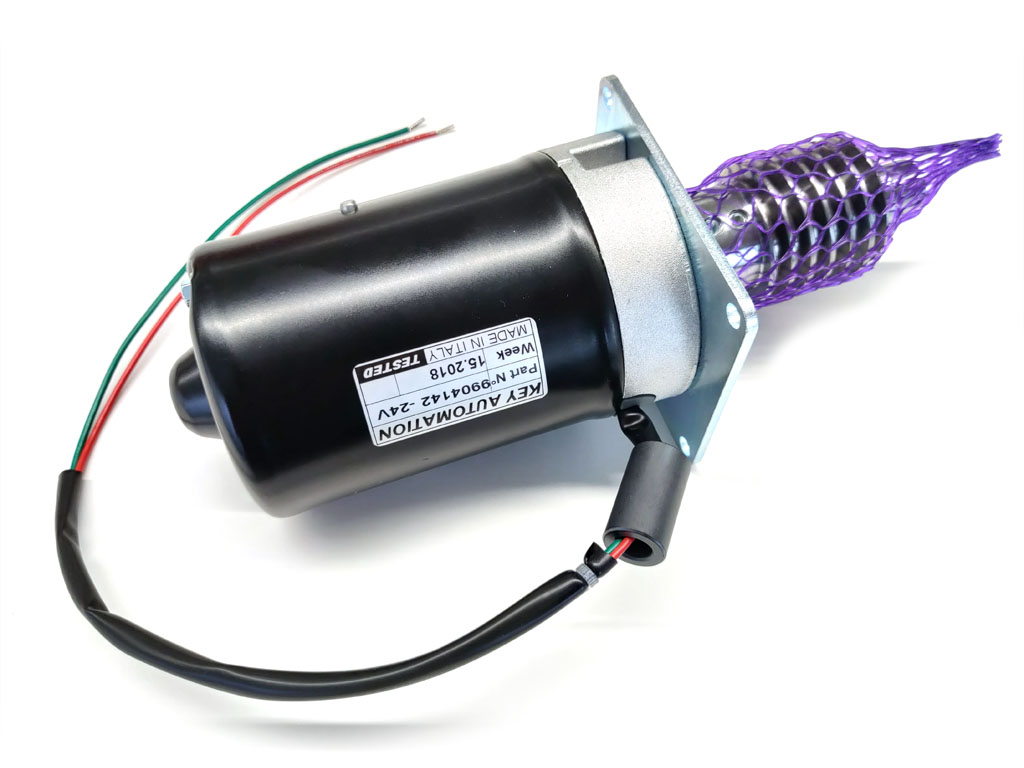

Spare motor group SUN FAST

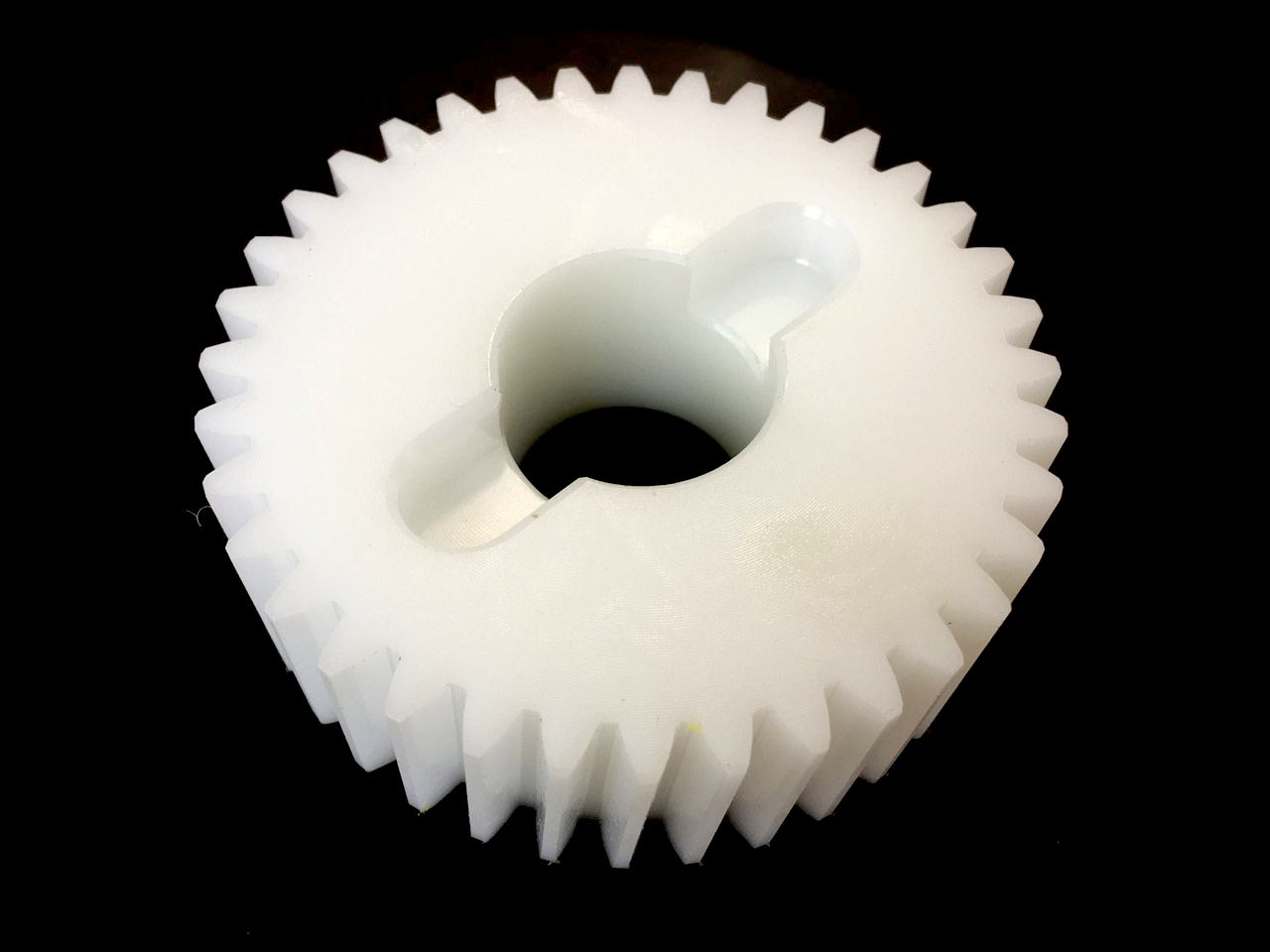

Spare inner Z36 gear for 500-1100KG TURBO/SUN 24V

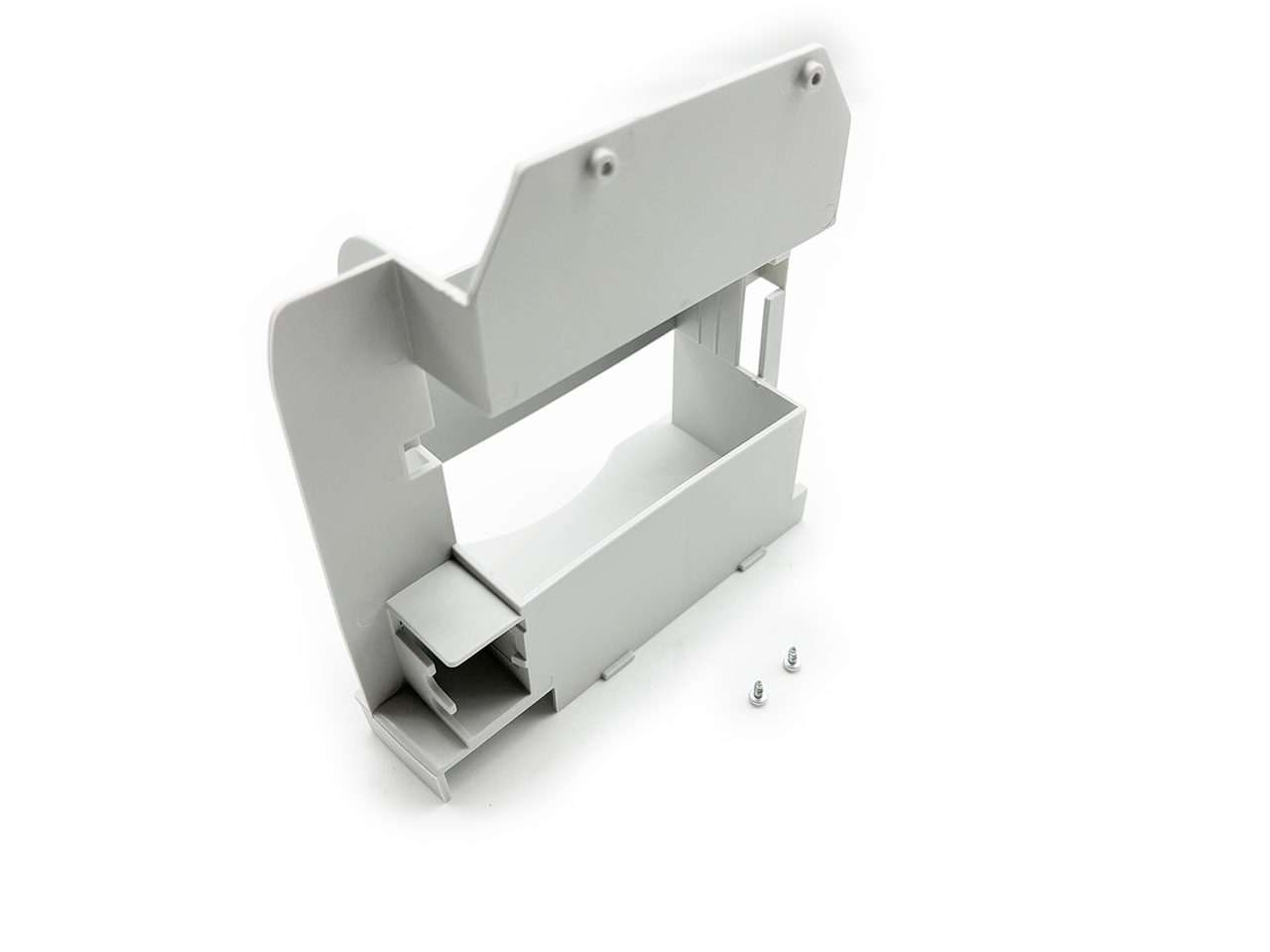

Spare SUN KBP support

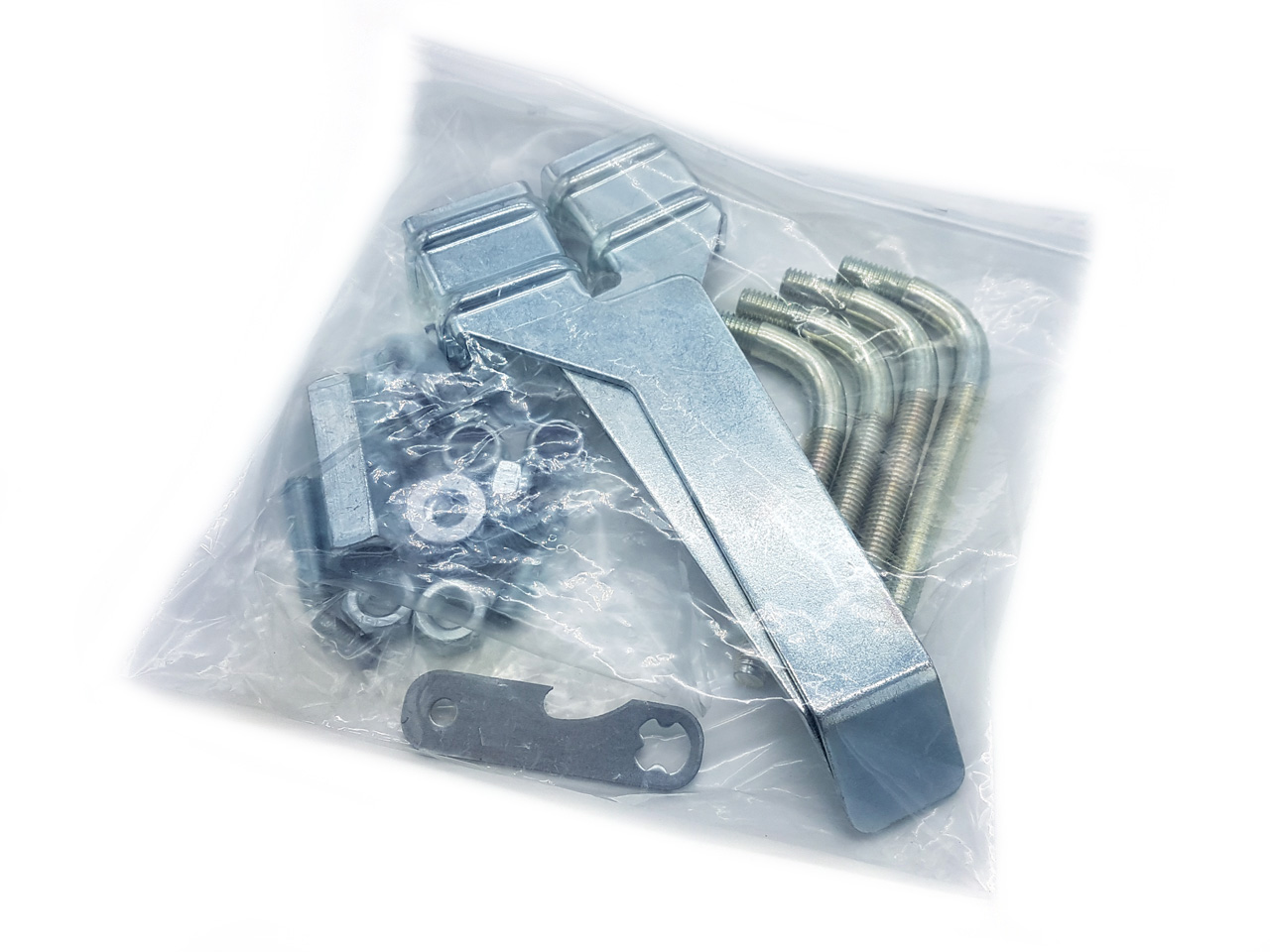

Spare SUN accessories pack (Magnetic LS)

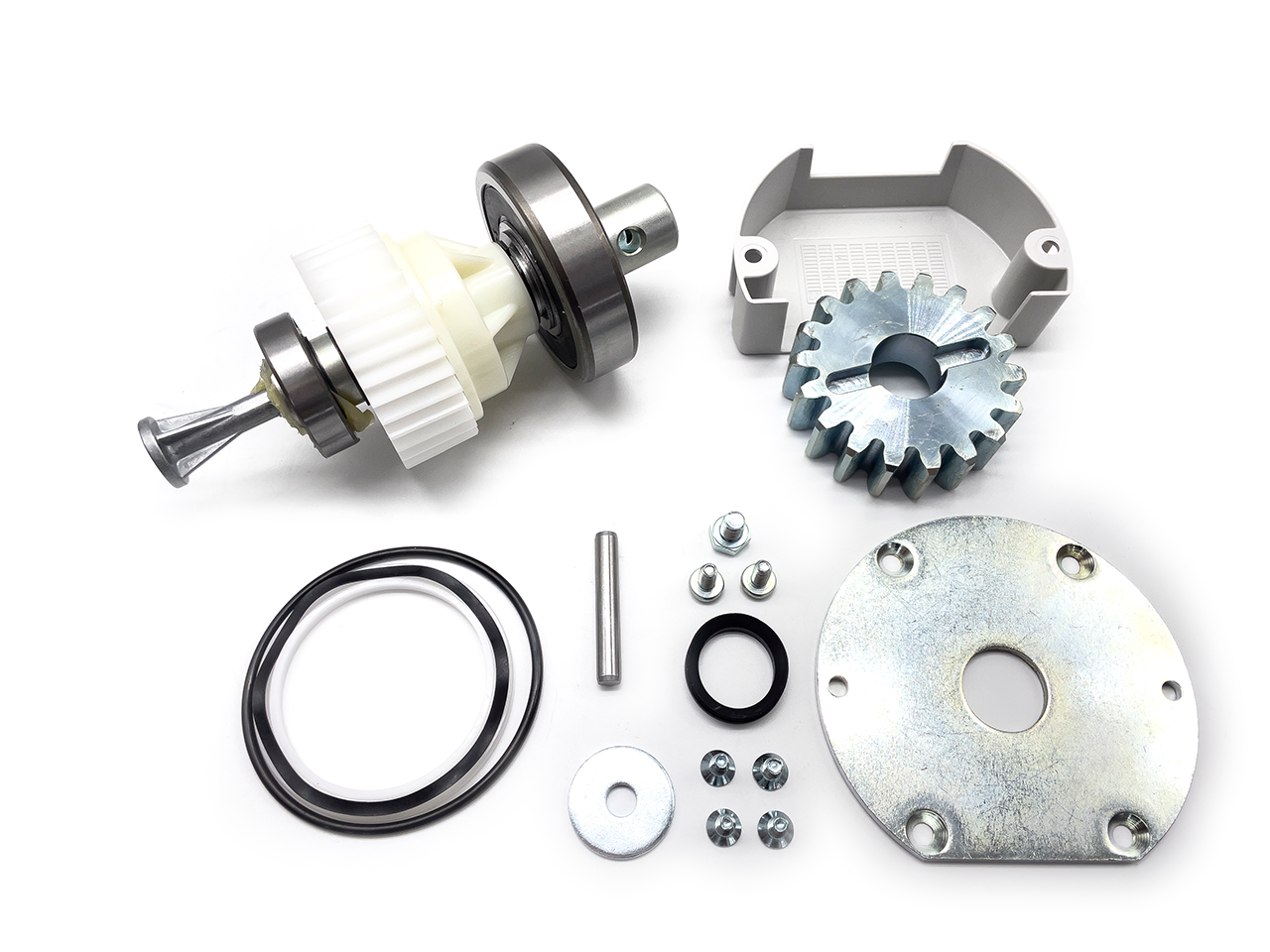

Spare main shaft group for 700/1100KG 24V SUN

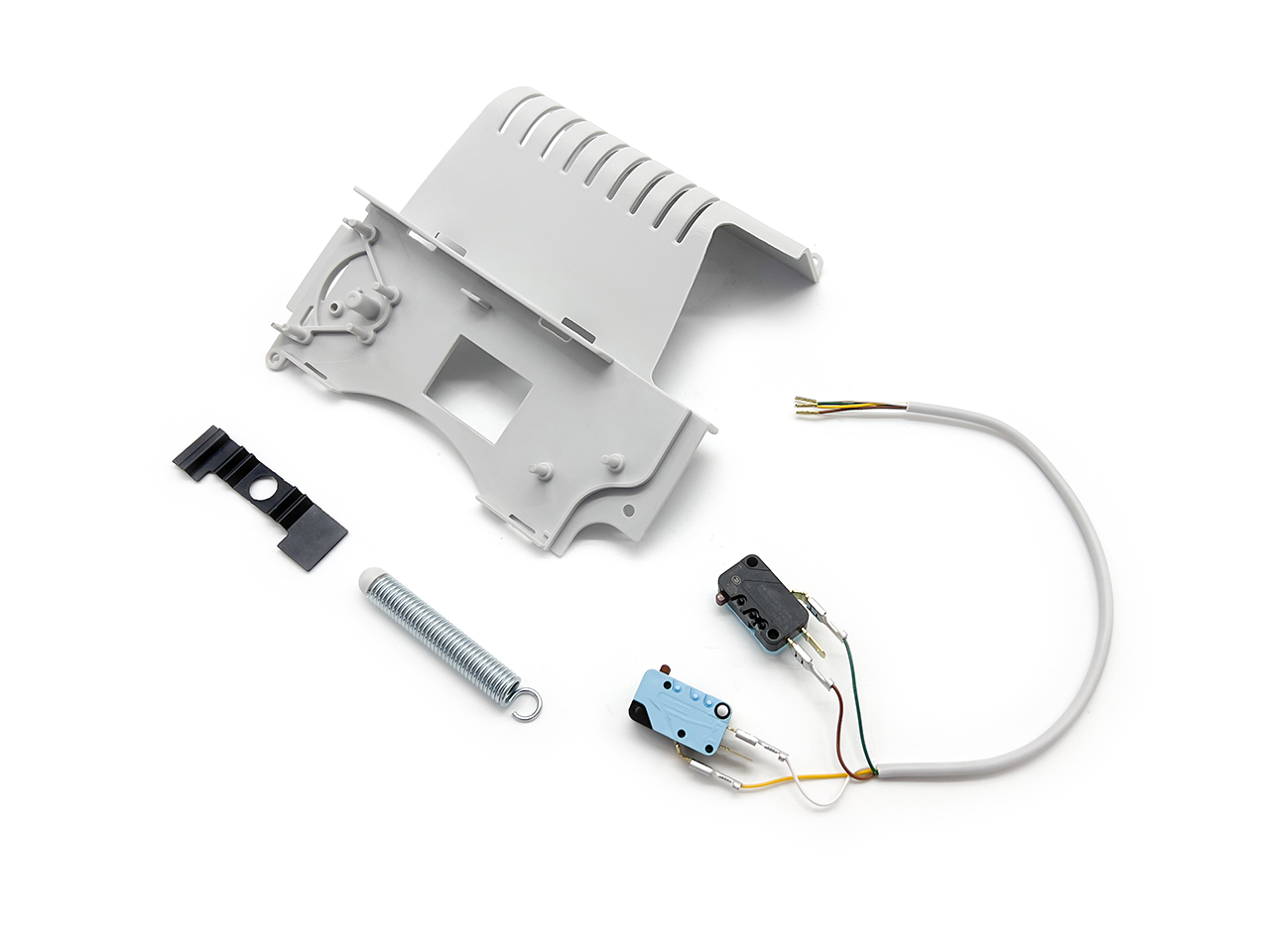

Spare limit switch assembly SUN
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing

plus

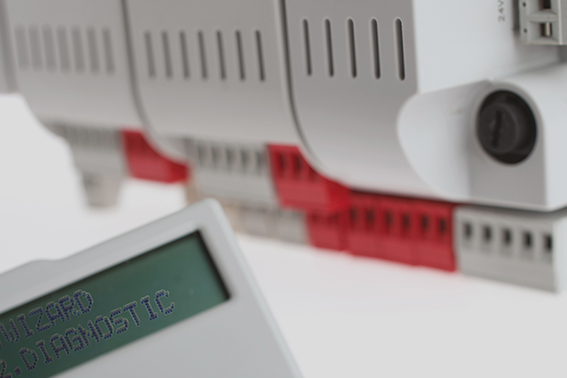

Control board 14A

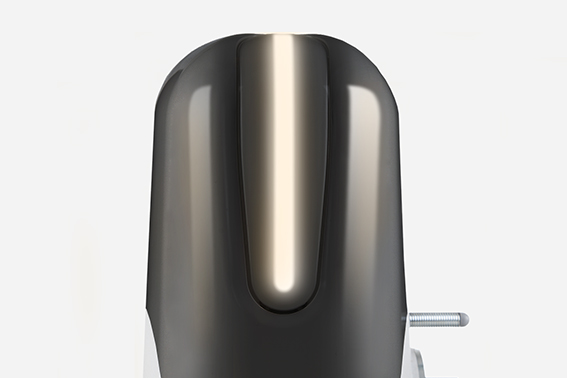

Built-in LED light

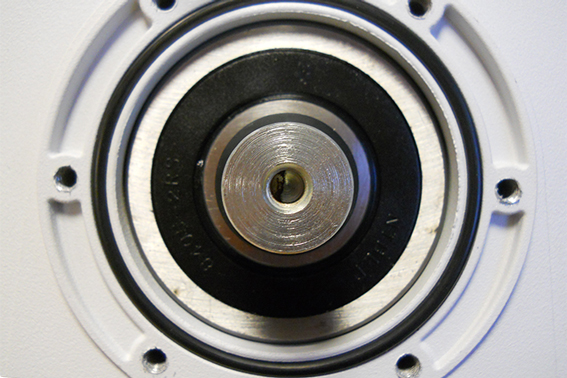

Robust gear reduction with self-standing bearing

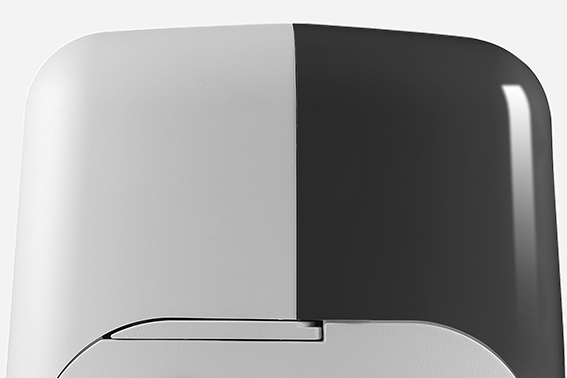

Stylish design screwless at sight

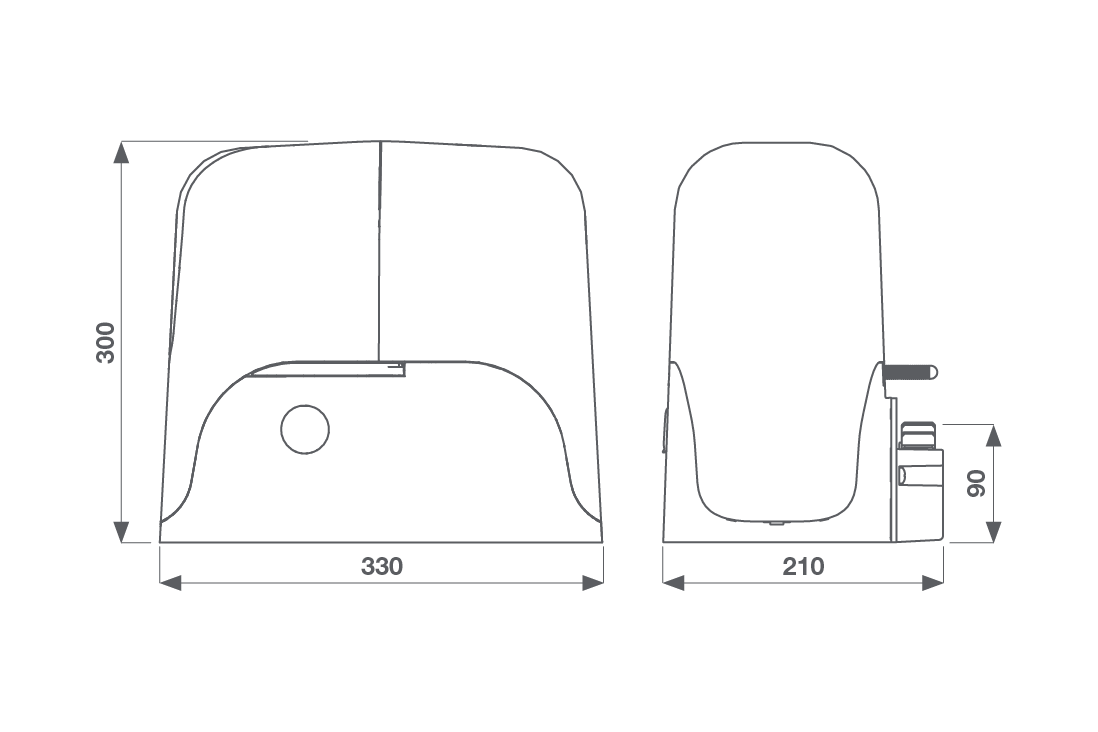

Dimensions

Technical Features

Speed cm/s 40
Torque Nm 23
Duty cycle percentage % 80
Control unit 14AF
Voltage Vac 230
AC Voltage frequency Hz 50/60
Nominal current A 1.2
Nominal power W 300
Appliance isolation class I
Degree of protection IP 44
Dimensions (W – D – H) mm 330 – 210 – 300
Packaging dimensions (L – D – H) mm 255 – 400 – 340
Packaging volume m3 0.03468
Item kg 13.5
Min operating temperature °C -20
Max operating temperature °C +55
Max leaf weight kg 500
