Description
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
900EG100LA
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
| Product code | 900EG100LA |
| DESIGN | Made entirely of thick aluminuim and metal for added stregth and long-term resistance to the elements |
| COMPATIBILITY | A wide range of accessories con be installed inside (photocells, key selectors and touch keypads from the EGO line) |
| MULTIFUNCTIONAL DESIGN | The columns can act as a support for safety accessories or an outdoor luminaire, or combination of both |
Accessories
Pair of photocells for external use for small pillars
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application.
Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included.
Digital key pad with new design interface, back-lighting and 2, channels transmitter.

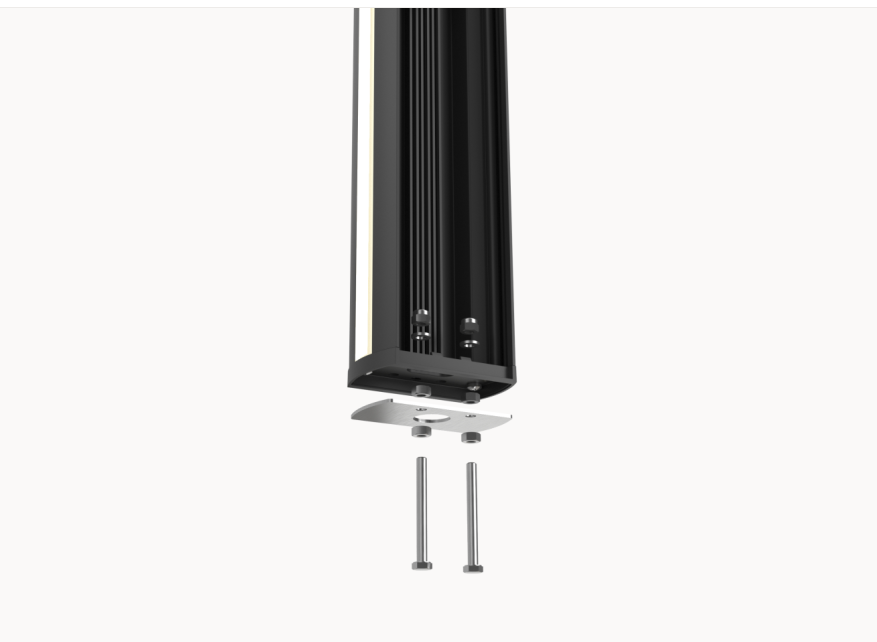

Anchor plate for fixing EGO Support post
Voltage regulator for LED lights 24 Vdc, max 30W
Tip for soil fixing
Single light with wiring to illuminate one side only, h. 100 cm
plus

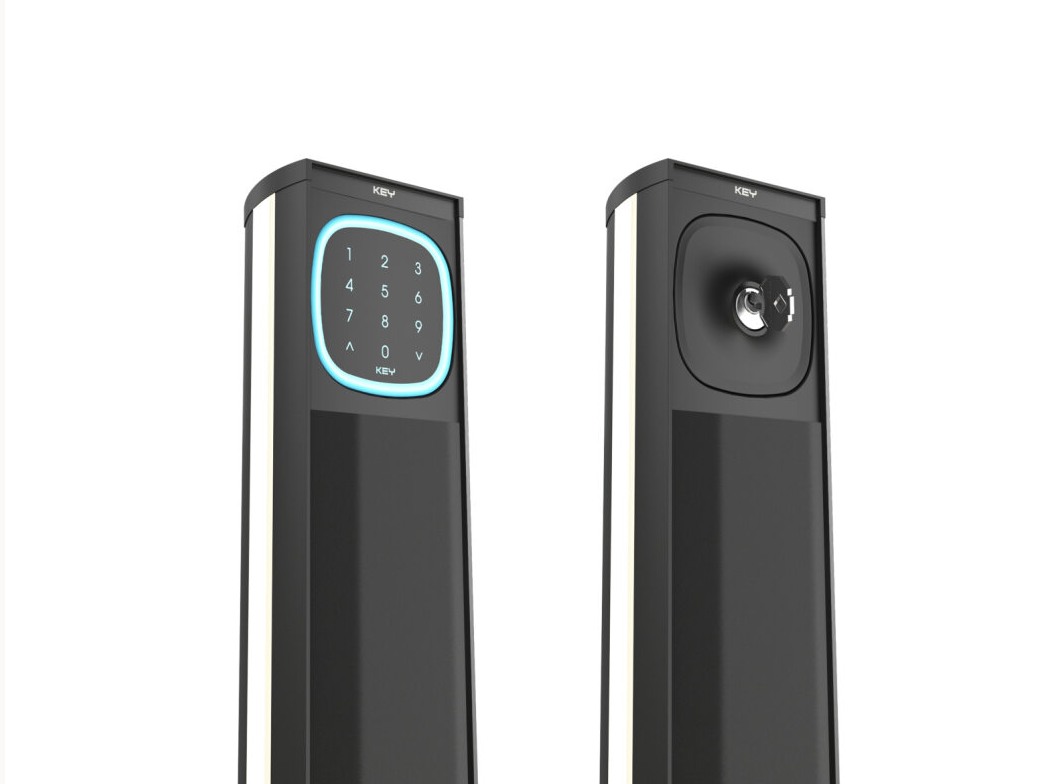

Housing Ego Keypad or Key switch
Anchor plate
Defines width of driveway
Compatible with Night Light Systems
Dimensions
Usage Limits
Technical Features
| Voltage | VDC | 24-35 |
| Colour Rendering Index | CRI | >90 |
| Brightness | Lm | 450-900 |
| Colour Temperature | 3000 |
| Degree of protection | IP | 54 |

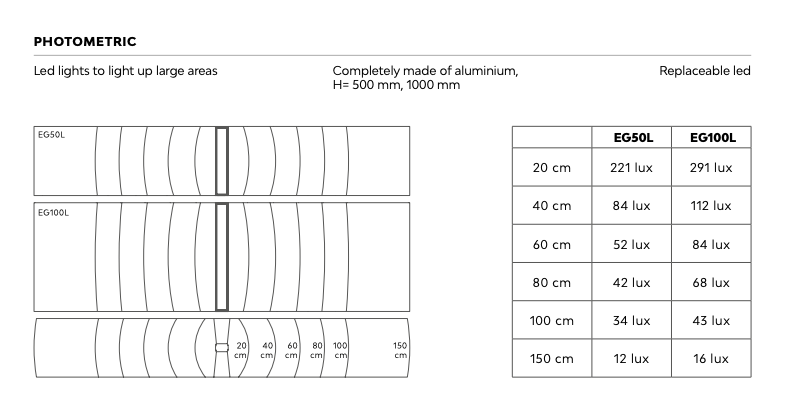

| Distance : Lux | 20cm | 291 lux |
| Distance : Lux | 40cm | 112 lux |
| Distance : Lux | 60cm | 84 lux |
| Distance : Lux | 80cm | 68 lux |
| Distance : Lux | 100cm | 43 lux |
| Distance : Lux | 150cm | 16 lux |
