Description
LEFT gearmotor for swing gates up to 3 m, 24 Vdc, with encoder
900SN5024SX
LEFT gearmotor for swing gates up to 3 m, 24 Vdc, with encoder
| Product code | 900SN5024SX |
| 90° Opening time | 15-25s |
| Control unit | 14AB2 |
| Nominal power | 120 W |
| Max leaf weight | 400 kg |
Accessories
12 V horizontal electric lock. Up to 2000kg
Articulated straight arm for columns from 301 to 450mm
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for 14A and SUN11024 and 14A
24V/10A power module
Display module cable length 120cm
Module for automation control from smartphone, for 14A and HALO
Module for automation control from smartphone, for 14A and HALO
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application.
Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
2-channel universal receiver, fix or rolling code, 1000 codes memory
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included.
Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Led garden light, RAL 7016 grey colour. H= 240 mm
Night sensor
2X1.5mm cable in 50 m coil, black
3-channel connector, IP68
2-channel connector, IP68
Kit for 24 V battery fixing
Kit of 1.3 Ah lead battery and battery charger
Sign
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Kit of electric limit switches for MEWA version 24VDC
Cord for external unlocking
Support post h. 100 cm
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 50 cm
Low voltage box
Spare MEWA/BLINDO/ALT 24VDC motor assembly
Spare ALT/MEWA unlock lock (2pcs, random keys)
Spare ALT/MEWA unlock lock (2pcs, #9233 keys)
Spare ALT4 double pinion
Spare MEWA main shaft assembly
Spare MEWA arms accessories pack
Spare MEWA/BLINDO/ALT 24V unlock shaft assembly
Spare straight short arm for MEWA
Spare top cover assembly for SN-50 (LEFT MOTOR)
Spare gate bracket
Spare MEWA fixing plate
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
plus

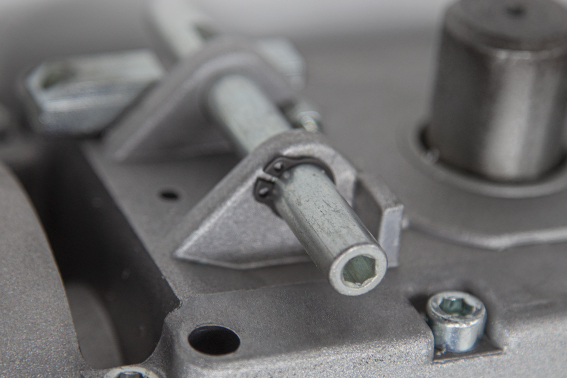

External release for an easy manual unlock from outside

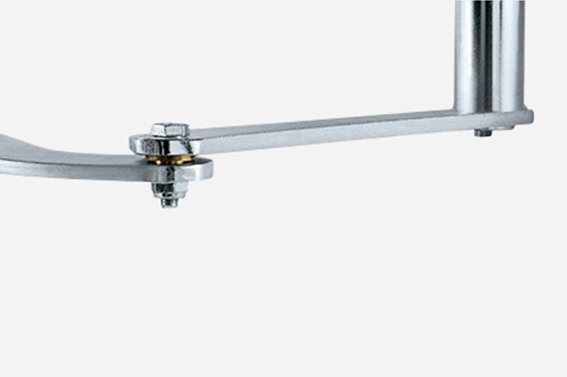

Reinforced and sturdy arm suitable for wide-angles opening

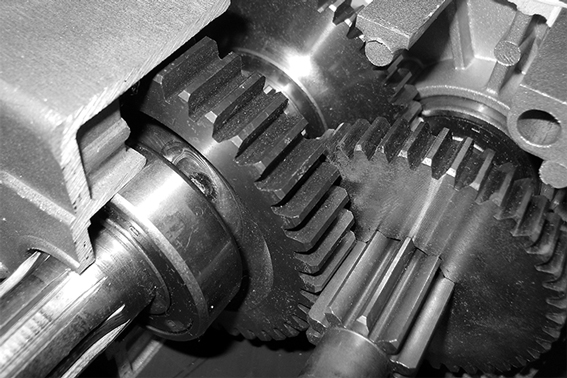

Powerful motor with solid metal gearbox

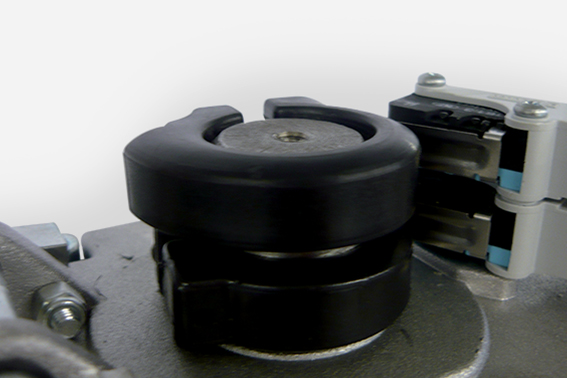

Limit switch with high precision regulation

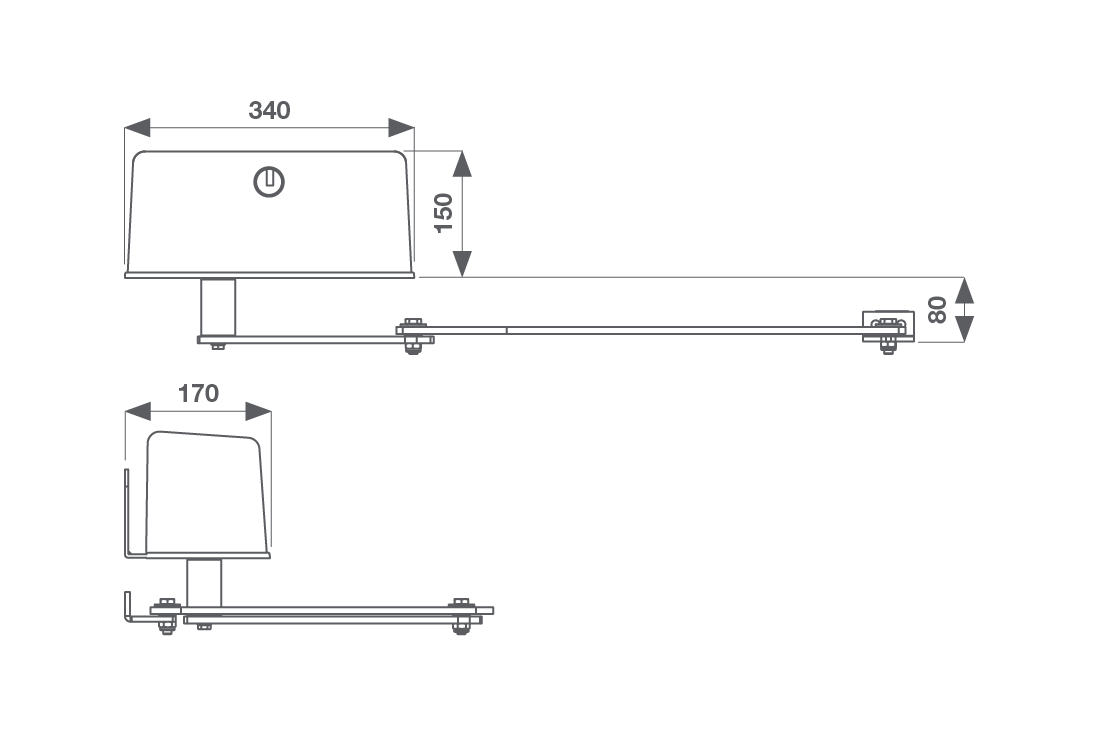

Dimensions

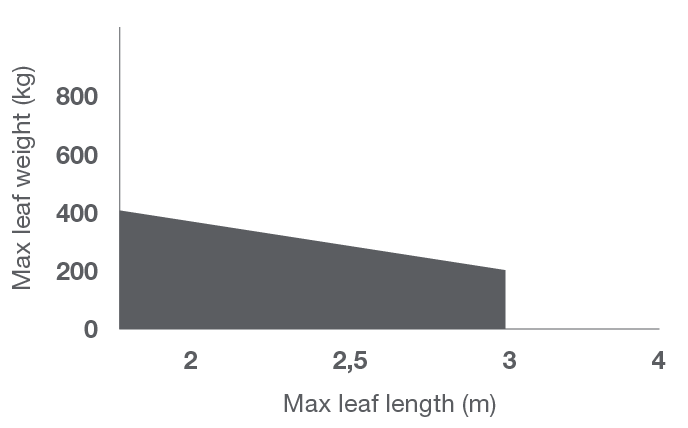

Usage Limits
Technical Features
| 90° Opening time | s | 15-25 |
| Torque | Nm | 350 |
| Duty cycle percentage | % | 80 |
| Control unit | 14AB2 | |
| Voltage | Vdc | 24 |
| Nominal current | A | 5 |
| Nominal power | W | 120 |
| Appliance isolation class | III |
| Degree of protection | IP | 43 |
| Dimensions (W – D – H) | mm | 330 – 187 – 157 |
| Packaging dimensions (L – D – H) | mm | 198 – 783 – 188 |
| Packaging volume | m3 | 0,02914 |
| Item | kg | 14,6 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
| Max leaf weight | kg | 400 |
| Max leaf length | m | 3 |
Related products

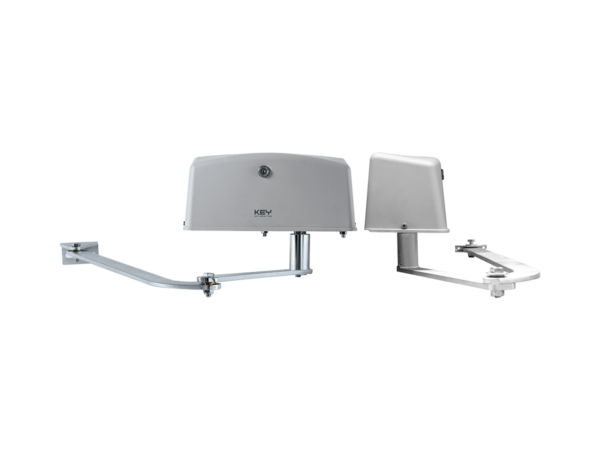

RIGHT gearmotor for swing gates up to 3 m, 24 Vdc, with encoder
