Description
Gearmotor for swing gates up to 4 m, 24 Vdc with encoder, with NLS function
900RAY4024E
Gearmotor for swing gates up to 4 m, 24 Vdc with encoder, with NLS function
| Product code | 900RAY4024E |
| Speed | 1.5 cm/s |
| Control unit | 14AB2 |
| Nominal power | 120 W |
| Max leaf weight | 600 kg |
Accessories
Adjustable front fixing bracket pair for RAY
Adjustable rear fixing bracket pair for RAY
RAY rear adaptor bracket
Closing mechanical limit switch for RAY
Rear extension for outward opening for RAY
12 V horizontal electric lock. Up to 2000kg
RAY adaptor kit for concurrent models
Unlocking cylinder with safety key for RAY and REVO+
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for 14A and SUN11024 and 14A
24V/10A power module
Display module cable length 120cm
Module for automation control from smartphone, for 14A and HALO
Module for automation control from smartphone, for 14A and HALO
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
2-channel universal receiver, fix or rolling code, 1000 codes memory
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application.
Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Solar power kit for the automation of road barriers and gates
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Led garden light, RAL 7016 grey colour. H= 240 mm
Night sensor
2X1.5mm cable in 50 m coil, black
Counter plate RAL7016 grey
Pair of recessed boxes
3-channel connector, IP68
2-channel connector, IP68
Kit for 24 V battery fixing
Kit of 1.3 Ah lead battery and battery charger
Sign
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 50 cm
Low voltage box
Spare SUN/RAY/REVO unlock key
Spare RAY accessory box
Spare RAY back cover (White) RAL9010
Spare RAY back cover (BLACK) RAL7016
Spare RAY POM thrust pin
Spare RAY2524/RAY2224/RAY4024E lower shell group
Spare RAY Y-shapped dragging bracket assembly
Spare RAY LED mask RAL9010 with LED strip
Spare RAY4024E motor assembly
Spare RAY 4M first stage reduction
Spare RAY4024E upper shell assembly
Spare LED voltage regulator board for RAY
Spare RAY door group RAL 7016
Spare RAY door group
Spare motor screw for 4M and fast RAY
Spare RAY 4M main screw
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
plus
Built-in LED light mask
Possibility to unlock motor with transmitter

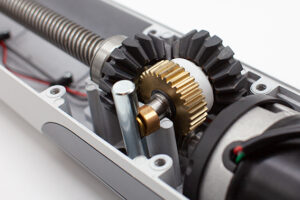

Robust bronze lock nut on endless screw
Metal gearing (RAY4024E, RAY4024R, RAY3024F)
Dimensions

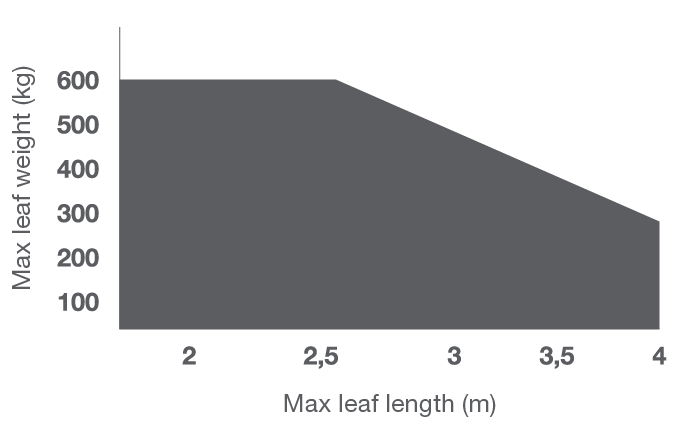

Usage Limits
Technical Features
| Speed | cm/s | 1,5 |
| 90° Opening time | s | 20-25 |
| Force | N | 2000 |
| Duty cycle percentage | % | 80 |
| Control unit | 14AB2 | |
| Voltage | Vdc | 24 |
| Nominal current | A | 5 |
| Nominal power | W | 120 |
| Appliance isolation class | III |
| Degree of protection | IP | 44 |
| Dimensions (W – D – H) | mm | 844 – 100 – 104 |
| Packaging dimensions (L – D – H) | mm | 145 – 920 – 120 |
| Packaging volume | m3 | 0,01601 |
| Item | kg | 9,3 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
| Max leaf weight | kg | 600 |
| Max leaf length | m | 4 |
