Description

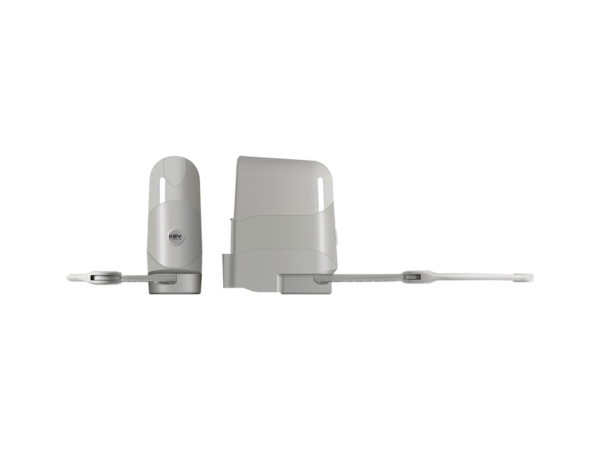

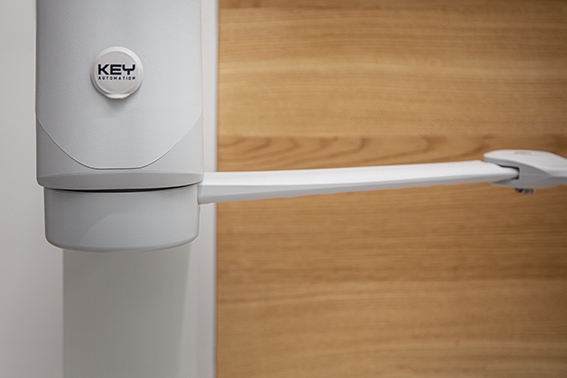

Kit REVO+ for dual swing gates with leaves up to 2.3 m, 24 Vdc motor with articulated arms, control unit CT20224.
Includes 1x SUB-44WR, 1x SUB-44R and mechanical stops in opening and closing.
900KREP2224
Kit REVO+ for dual swing gates with leaves up to 2.3 m, 24 Vdc motor with articulated arms, control unit CT20224.
Includes 1x SUB-44WR, 1x SUB-44R and mechanical stops in opening and closing.
| Product code | 900KREP2224 |
| 90° Opening time | 14-20 s |
| Control unit | CT20224 |
| Nominal power | 115 W |
| Max leaf weight | 250 kg |
You must be logged in to post a review.
Accessories
12 V horizontal electric lock. Up to 2000kg
Unlocking cylinder with safety key for RAY and REVO+

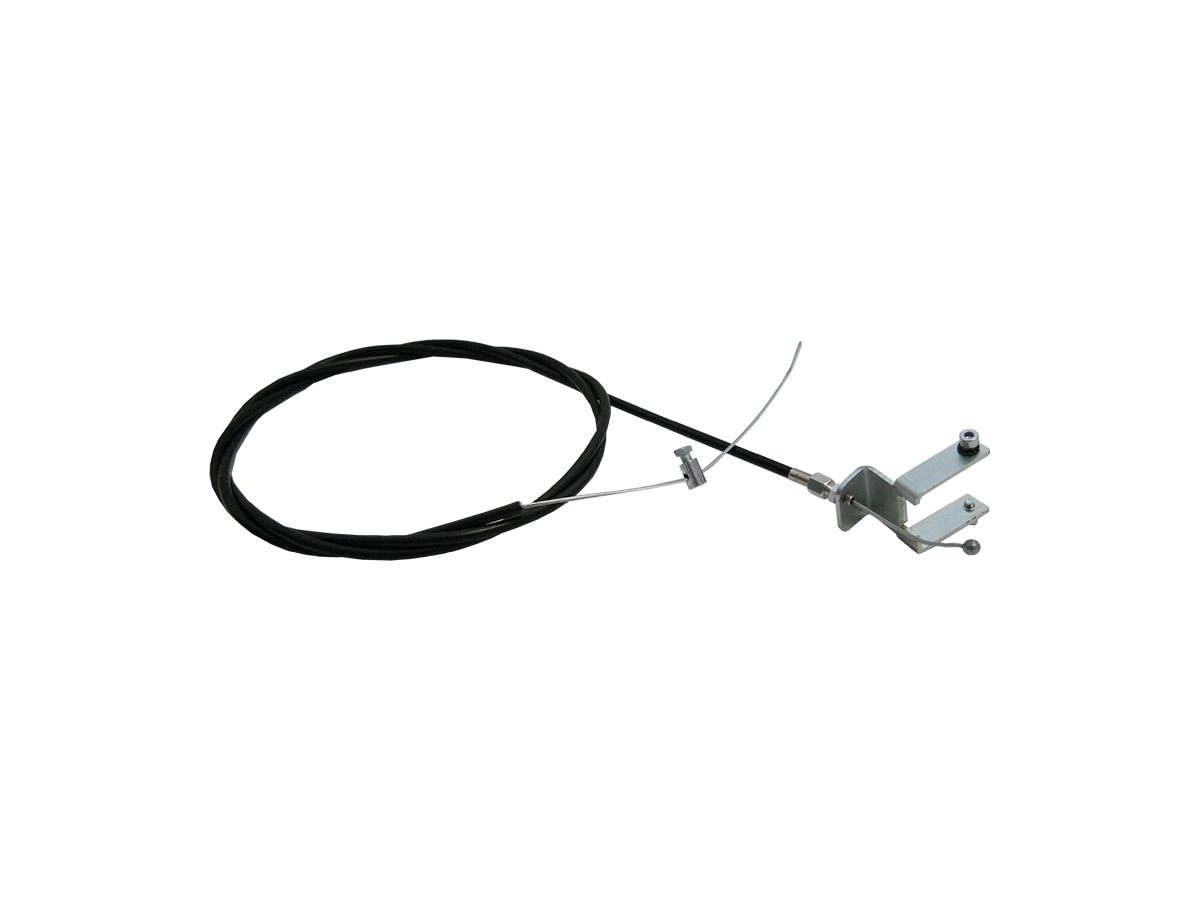

Accessory for unlocking from the outside with metallic cord
Accessory for smaller gap opening

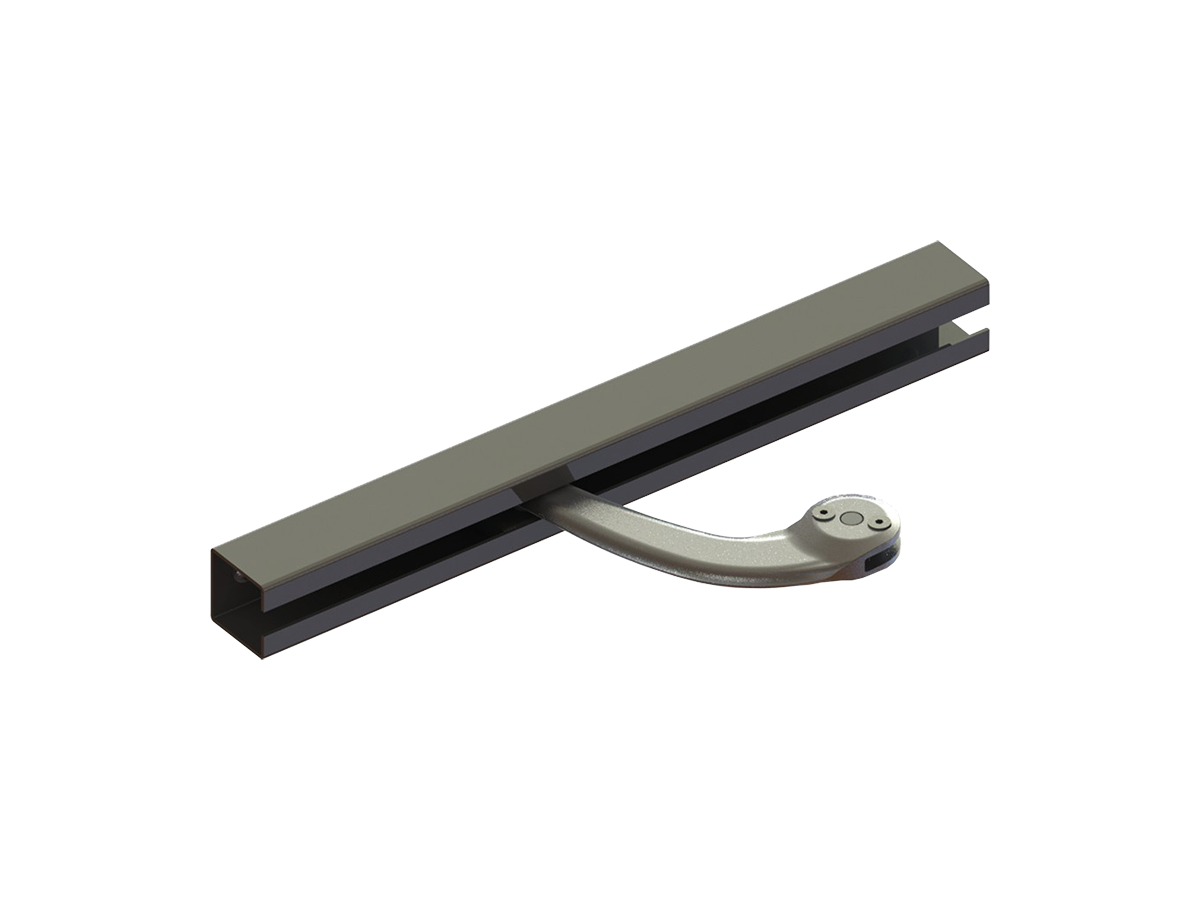

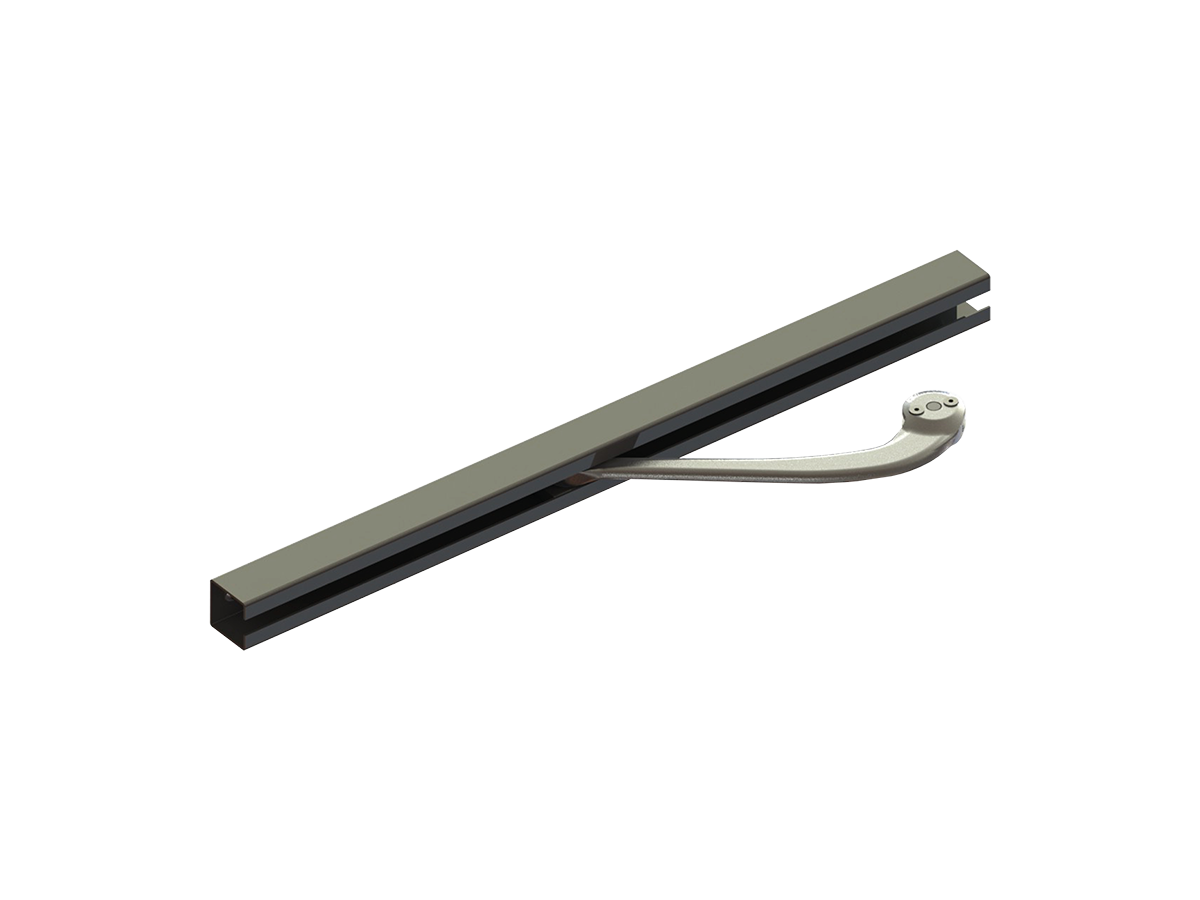

Accessory for slide opening
Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Spare 24V control unit 2 motors (built in radio)
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application.
Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
2-channel universal receiver, fix or rolling code, 1000 codes memory
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included.
Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Kit of 1.3 Ah NiMH battery and battery charger
Sign
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm
Support post h. 50 cm
Low voltage box
Spare SUN/RAY/REVO unlock key
Spare SUN/REVO unlock Rubber cap

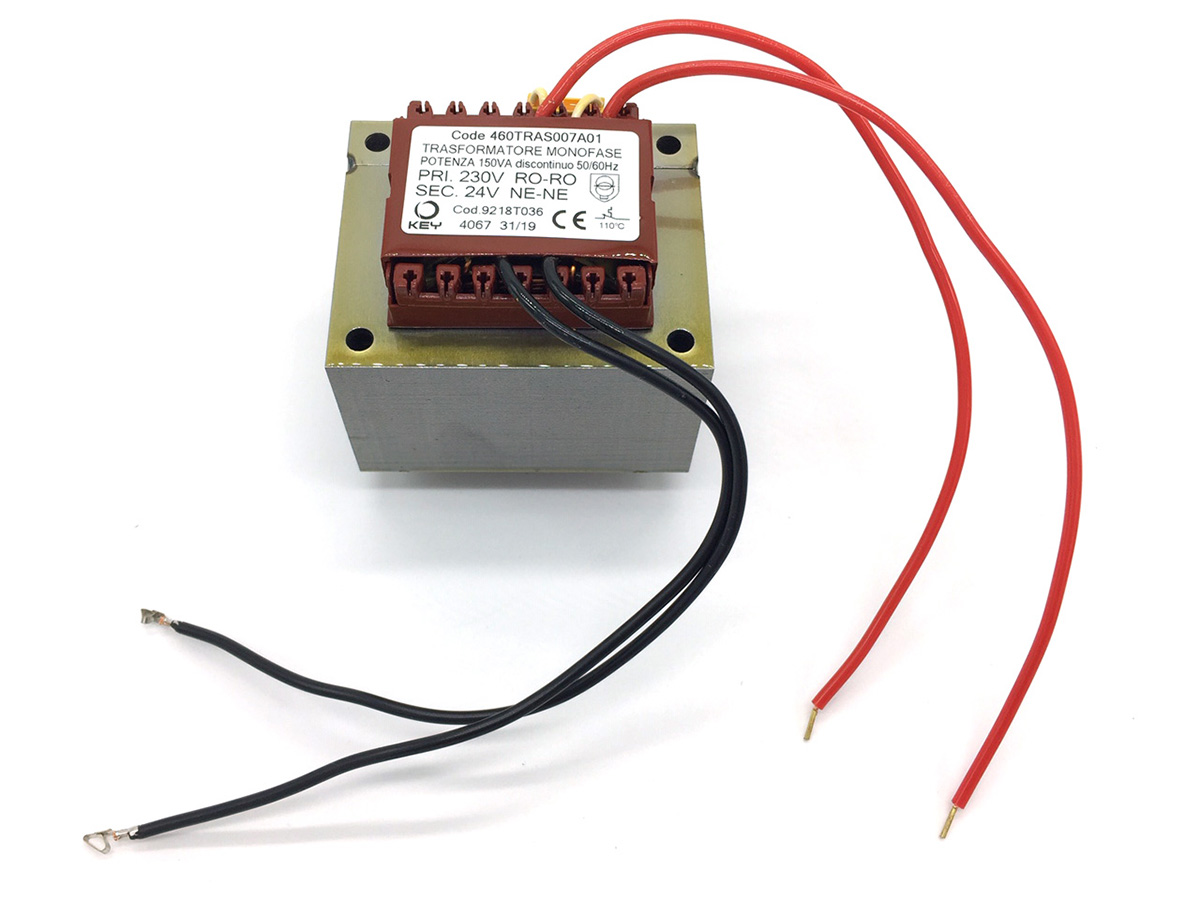

Spare 230V/24V 150VA transformer with thermal cut out

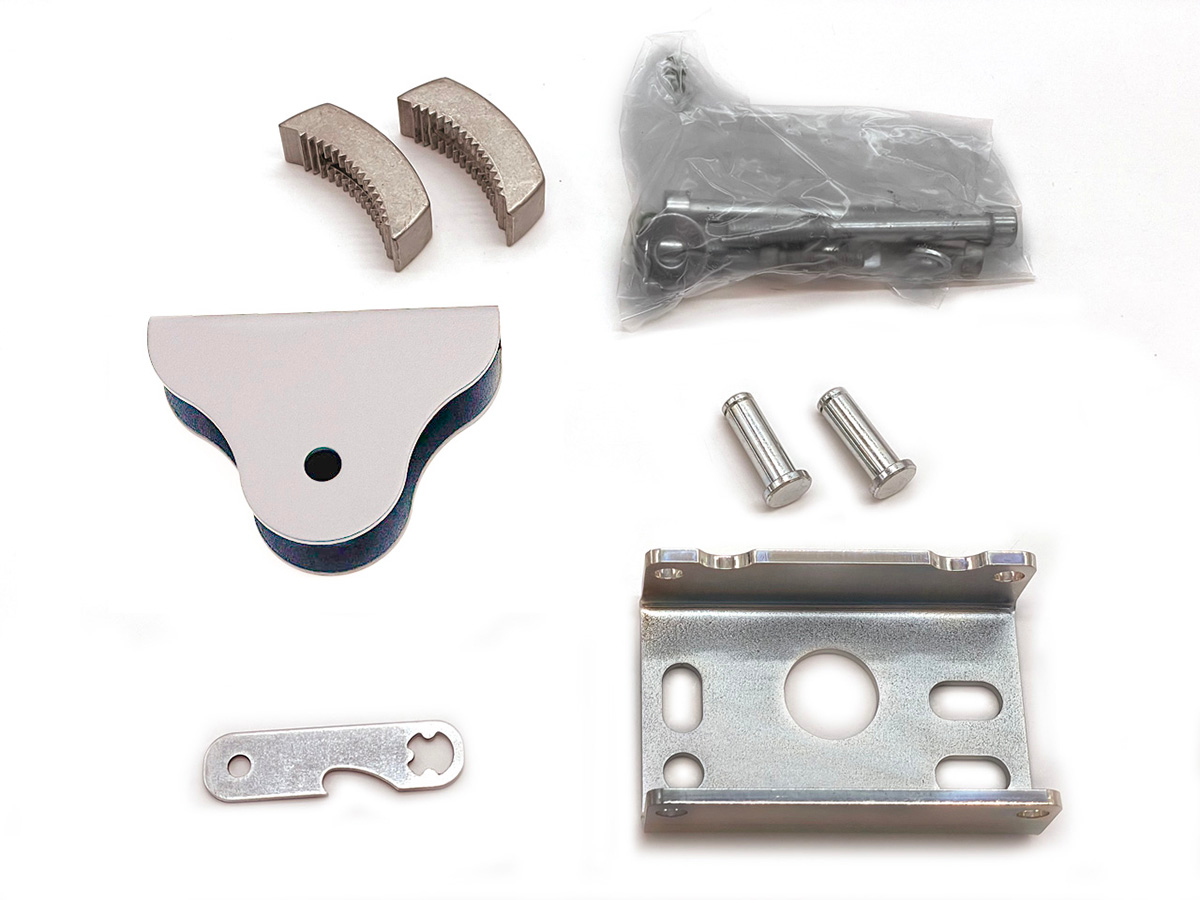

Spare REVO+ RAL7047 accessories box

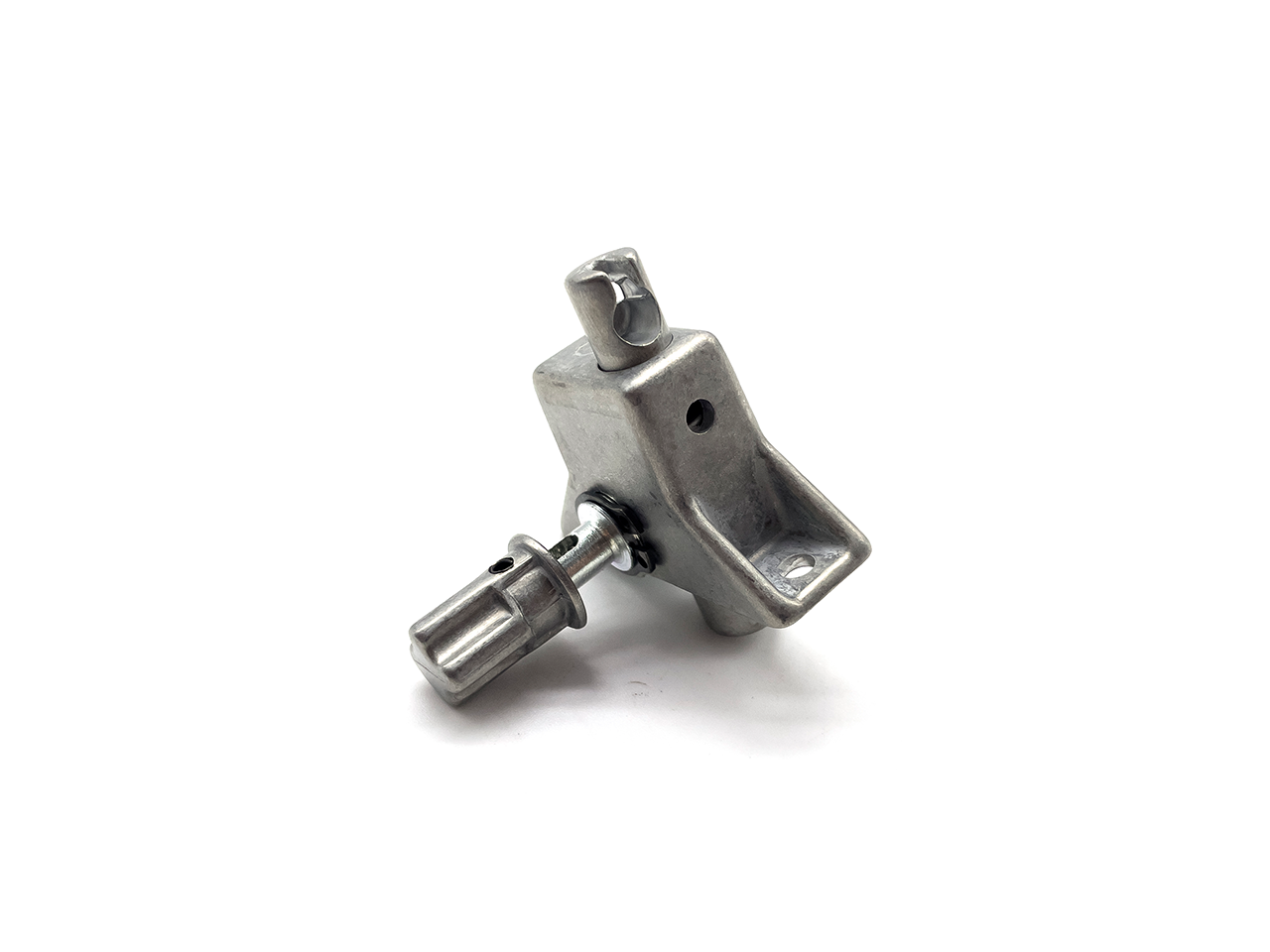

Spare REVO unlock group

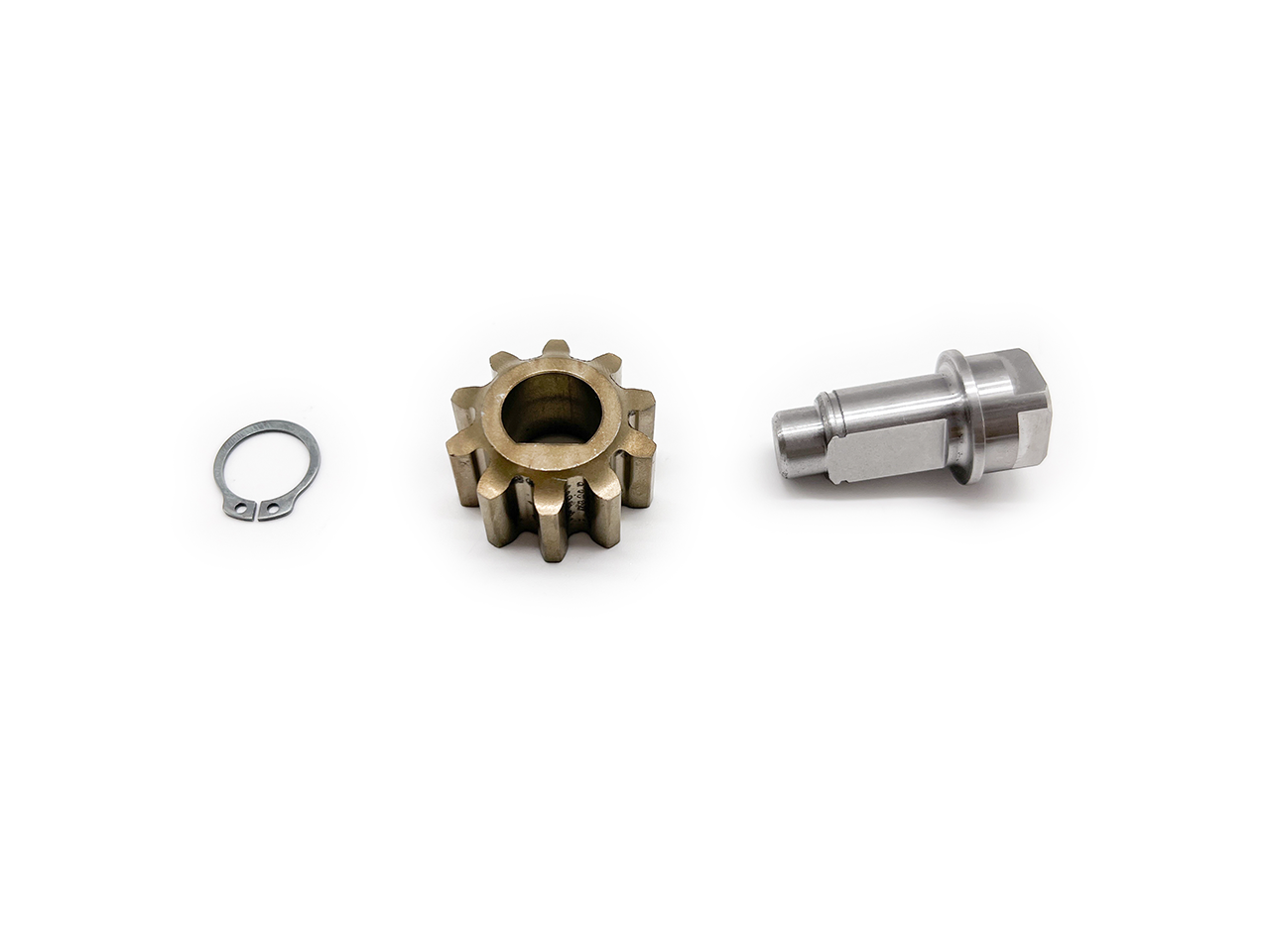

Spare REVO+ middle shaft assembly

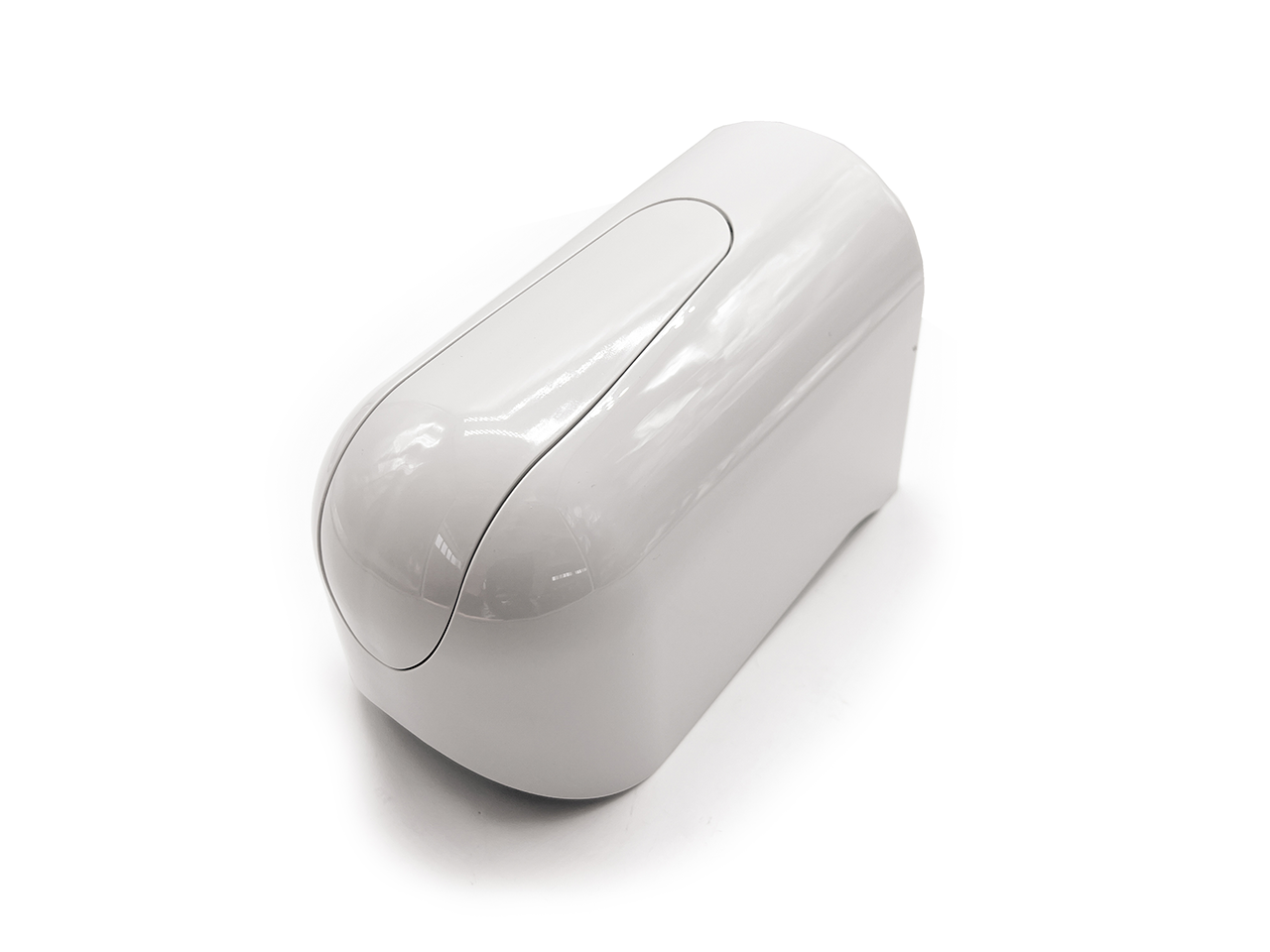

Spare REVO upper plastic shell group RAL7047
Spare REVO+ limit switches

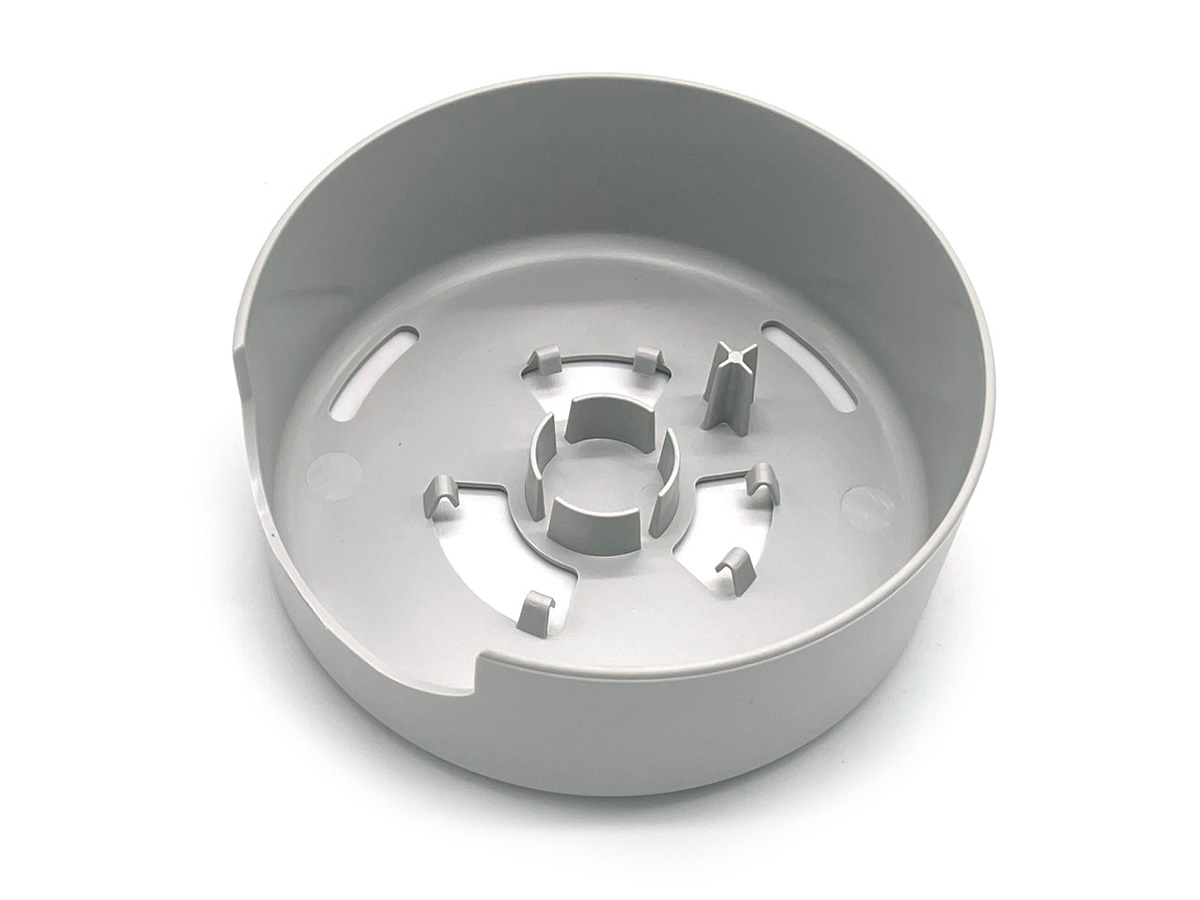

Spare REVO+ main arm lower cover RAL7047

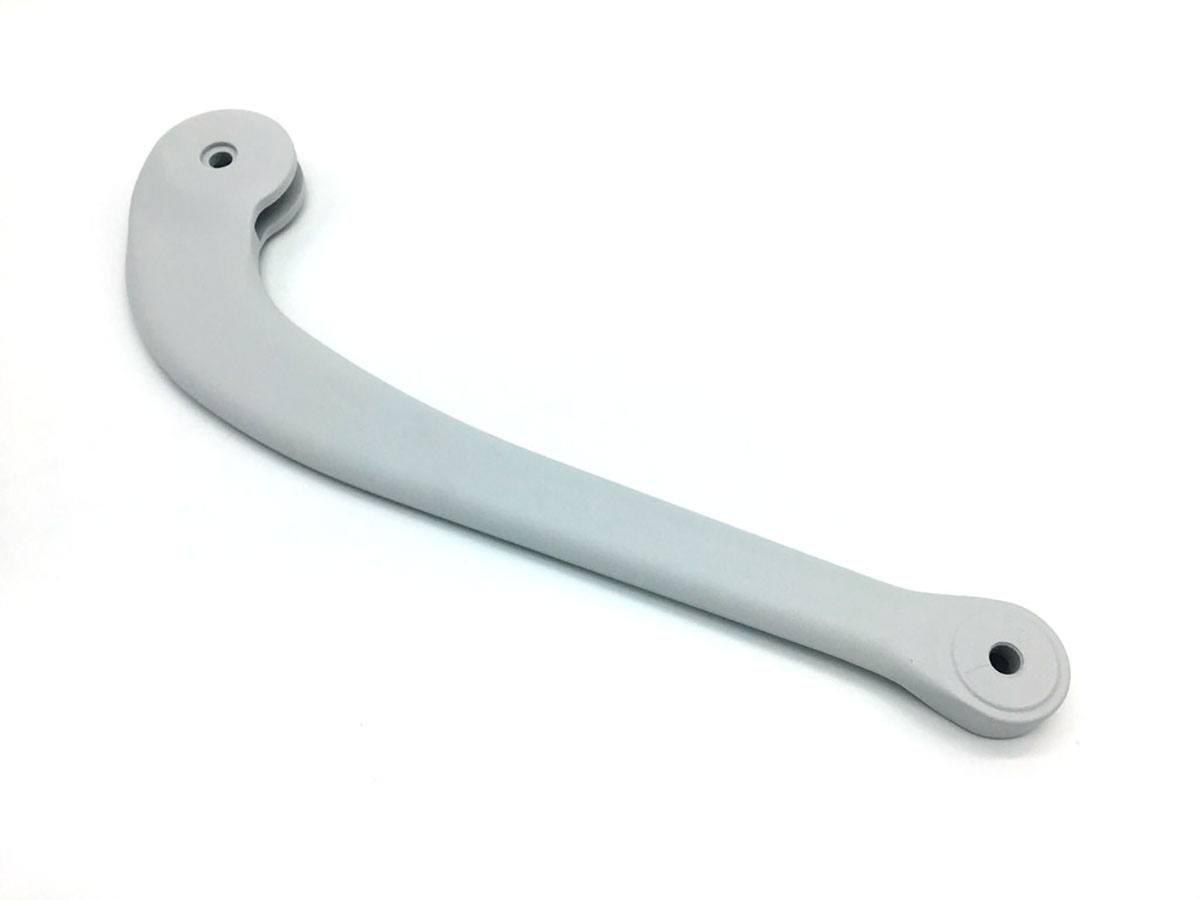

Spare REVO+ gate arm RAL7047

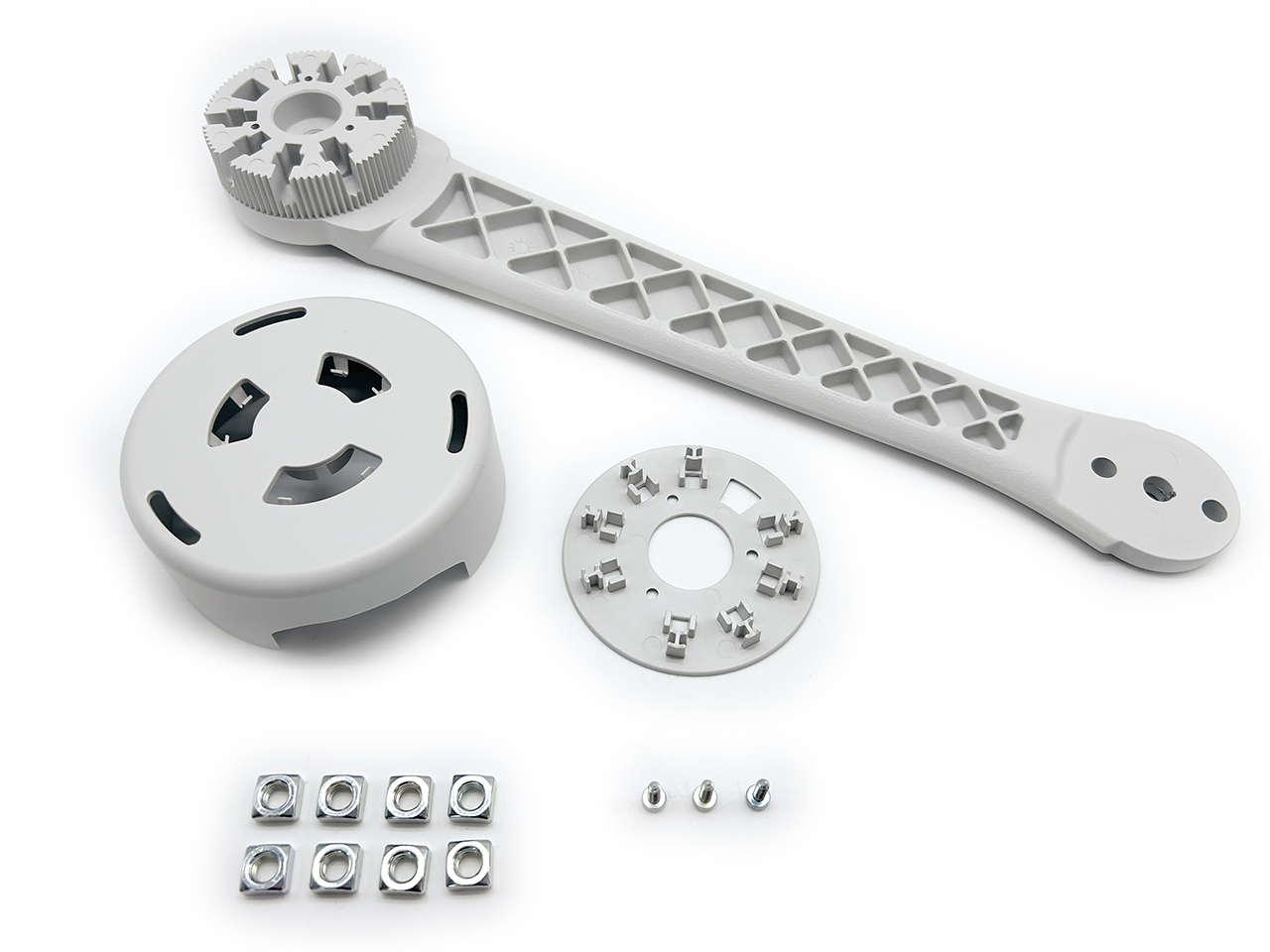

Spare REVO+ motor lever group RAL7047

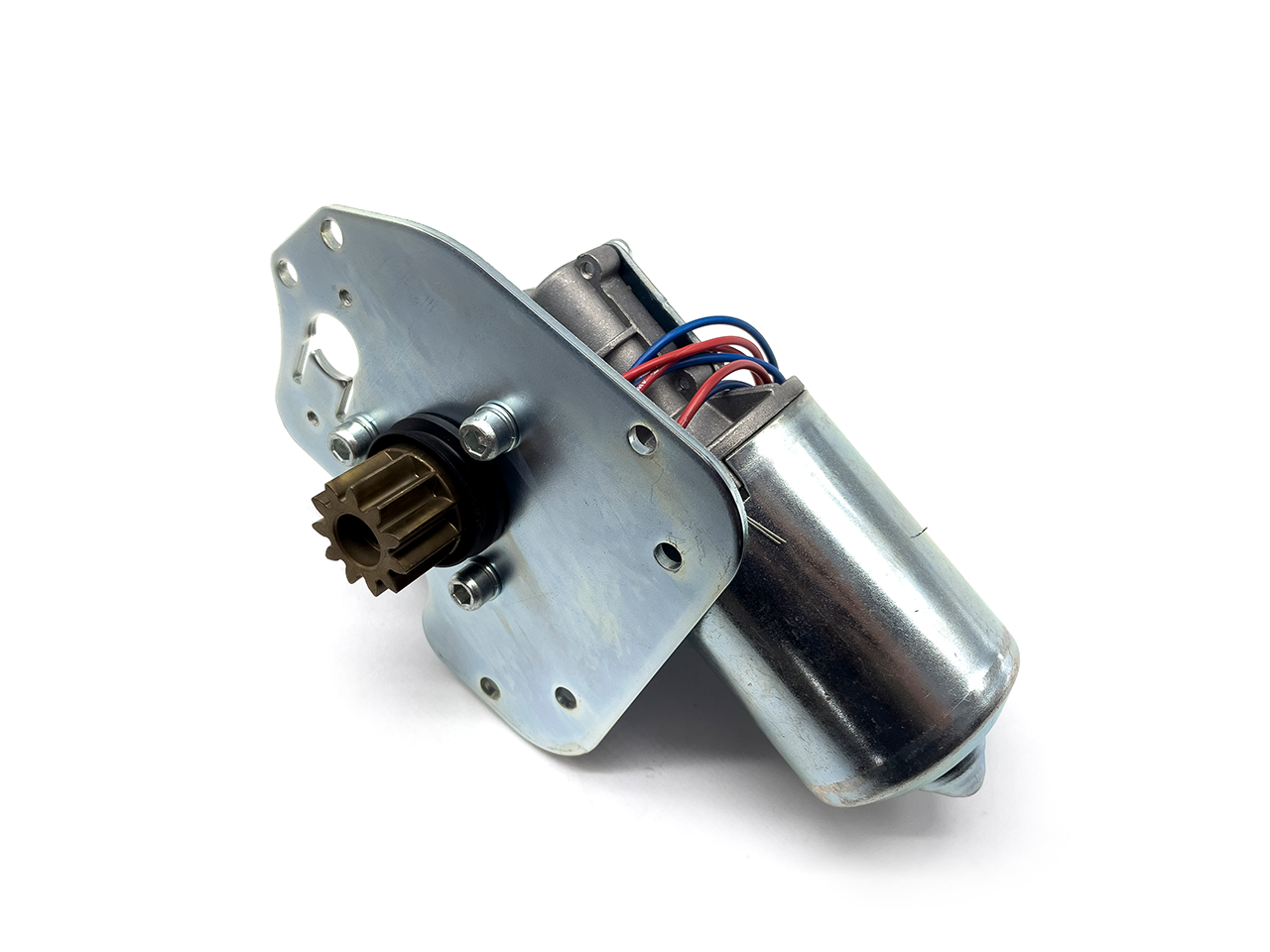

Spare REVO 24V gear motor assembly

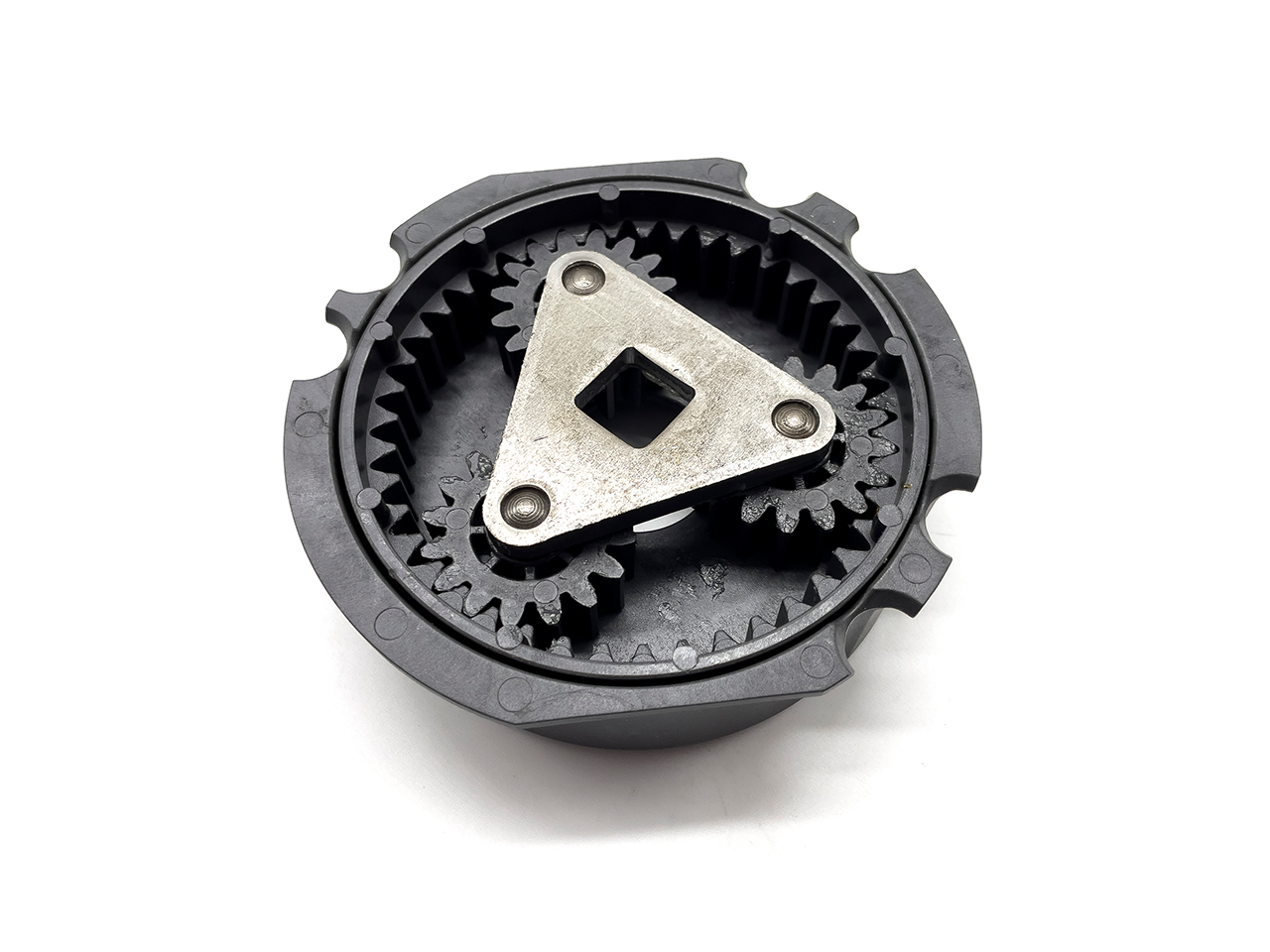

Spare REVO first reduction group

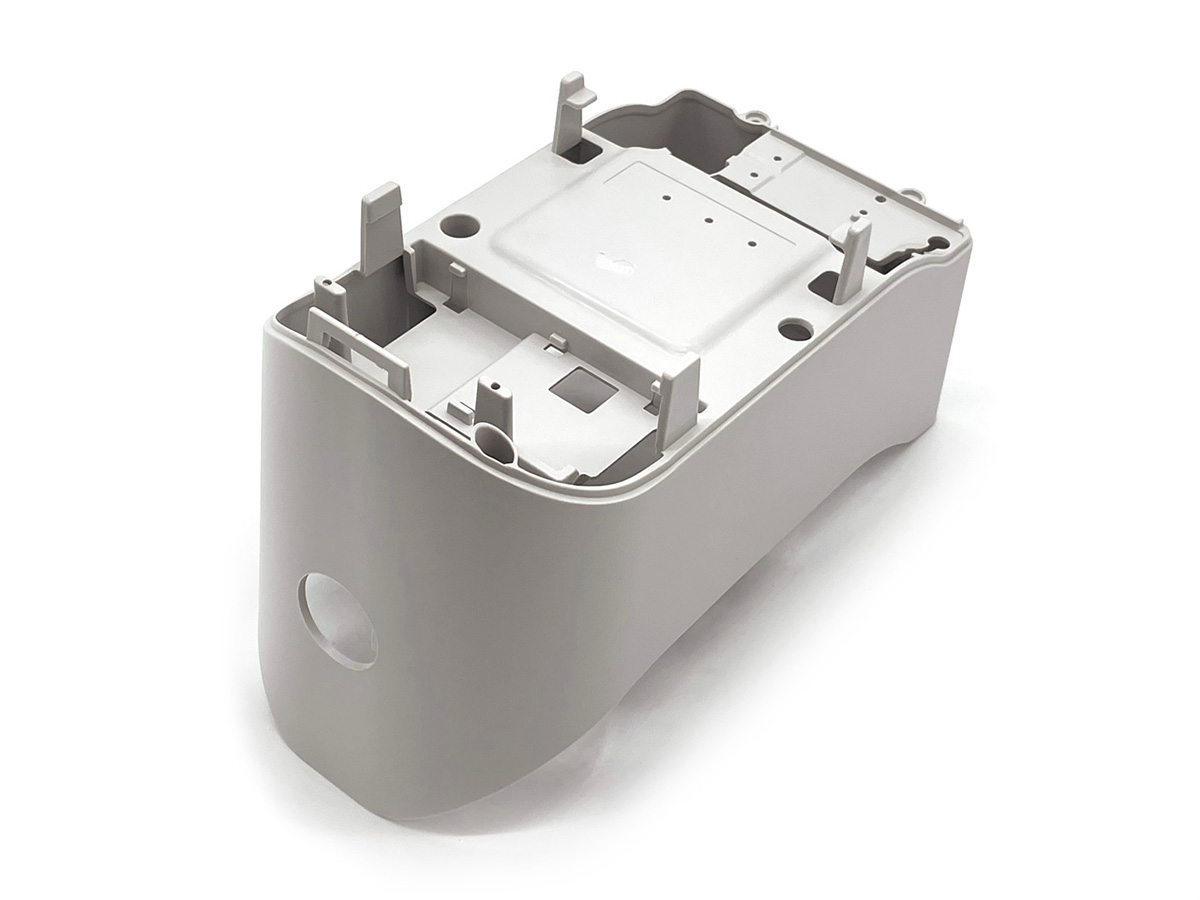

Spare REVO+ intermediate plastic shell RAL7047
Support post h. 100 cm with integrated LED light (10W LED)
plus

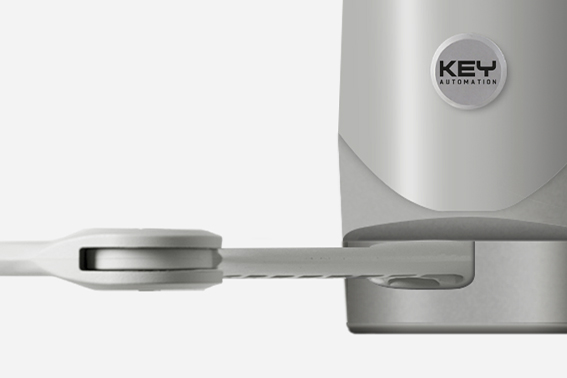

Installation up to 5 cm from the ground

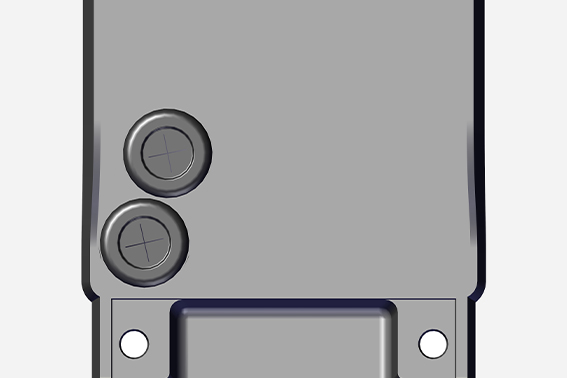

Easy cable passage
Compact dimensions (width 12 cm)

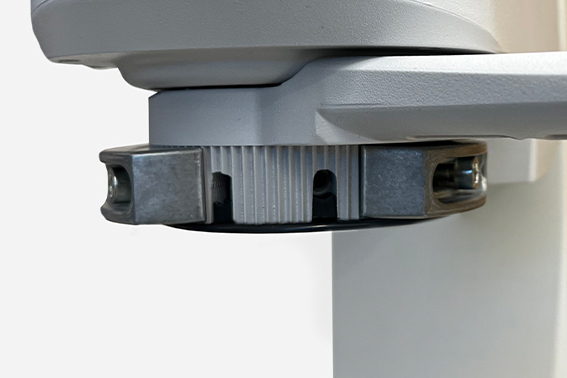

Simplified limit switch adjustment

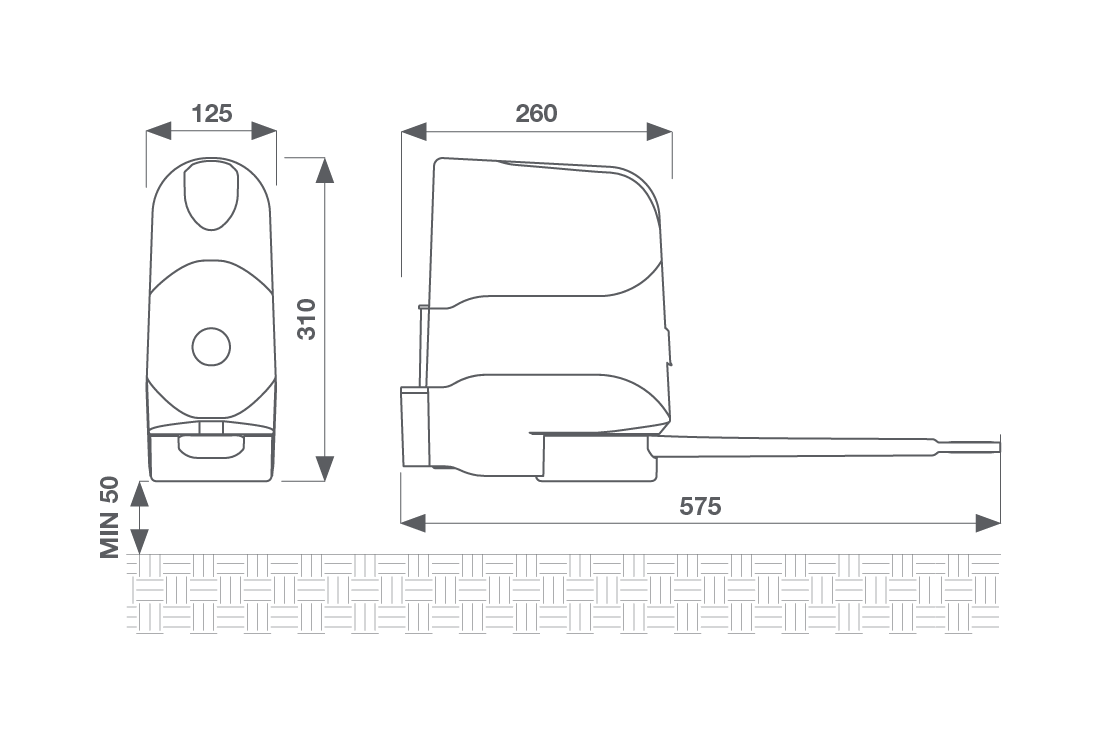

Dimensions

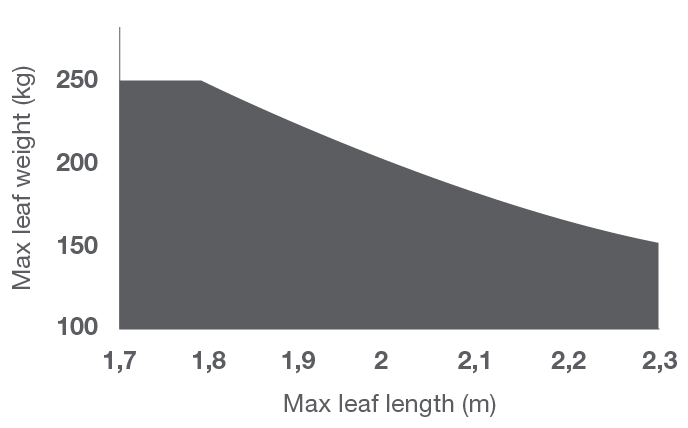

Usage Limits
Technical Features
| 90° Opening time | s | 14-20 |
| Torque | Nm | 120 |
| Duty cycle percentage | % | 80 |
| Control unit | CT20224 | |
| Voltage | Vac | 230 |
| AC Voltage frequency | Hz | 50/60 |
| Nominal current | A | 0.65 |
| Nominal power | W | 115 |
| Appliance isolation class | I |
| Degree of protection | IP | 44 |
| Dimensions (W – D – H) | mm | 125 – 255 – 310 |
| Packaging dimensions (L – D – H) | mm | 290 – 400 – 470 |
| Packaging volume | m3 | 0,05452 |
| Item | kg | 13.5 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
| Max leaf weight | kg | 250 |
| Max leaf length | m | 2.3 |
