Description

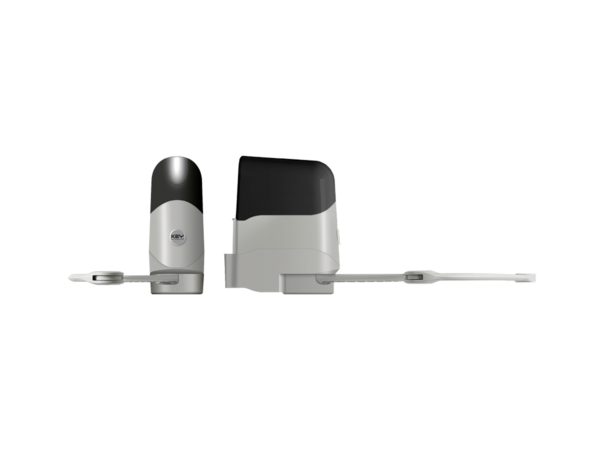

Gearmotor for swing gates up to 2.3 m, 24 Vdc, 14A control unit with power module PO24 included, with NLS function
900REP2024S
Gearmotor for swing gates up to 2.3 m, 24 Vdc, 14A control unit with power module PO24 included, with NLS function
| Product code | 900REP2024S |
| 90° Opening time | 14-20 s |
| Control unit | 14A |
| Nominal power | 115 W |
| Max leaf weight | 250 kg |
Accessories
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
24 Vdc flashing light, with antenna
Spare SUN/RAY/REVO unlock key
Spare SUN/REVO unlock Rubber cap
Spare 230V/24V 150VA transformer with thermal cut out
Spare REVO+ RAL7047 accessories box
Spare REVO unlock group
Spare REVO+ middle shaft assembly

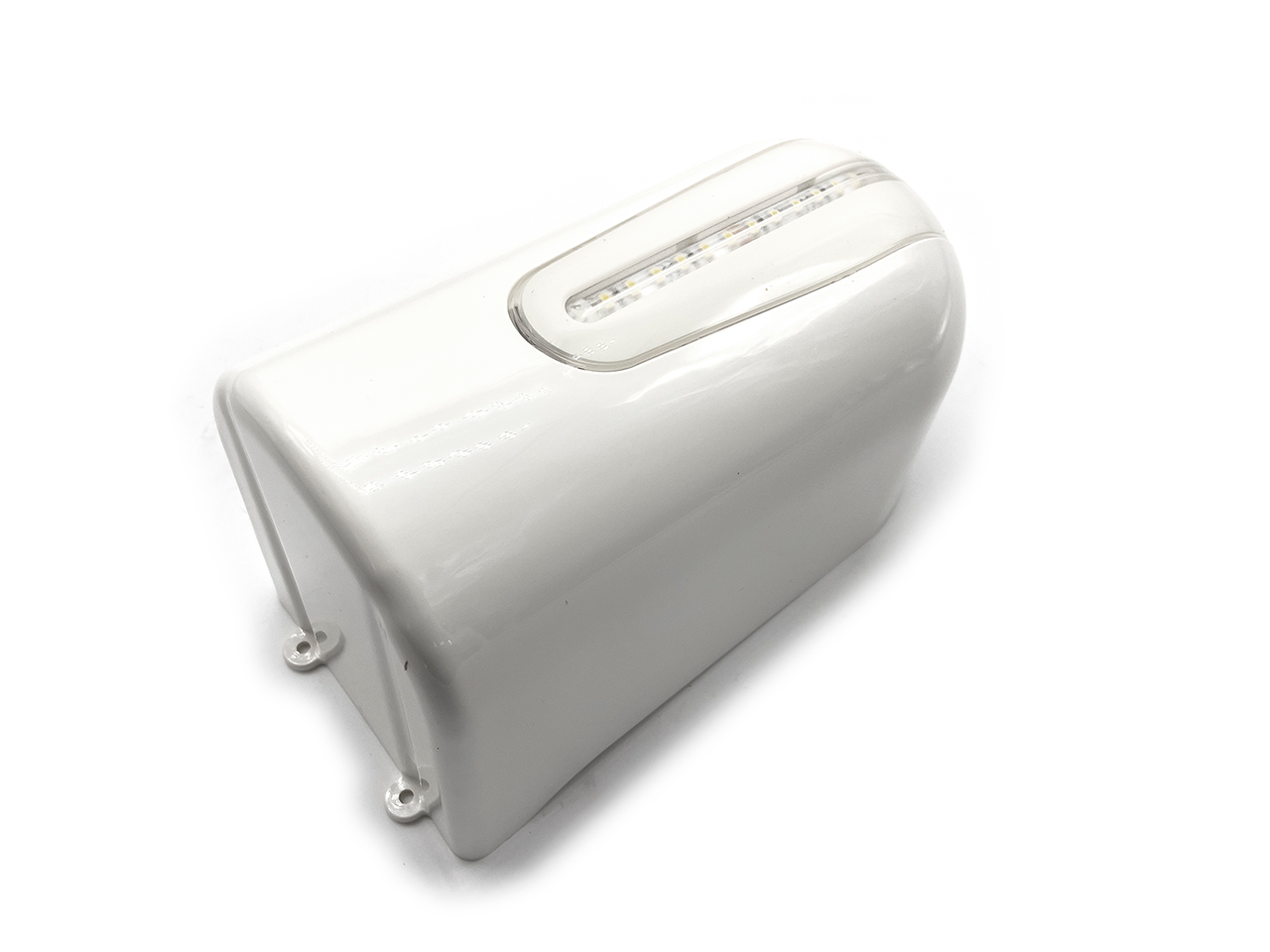

Spare REVO+ upper cover with NLS RAL9010

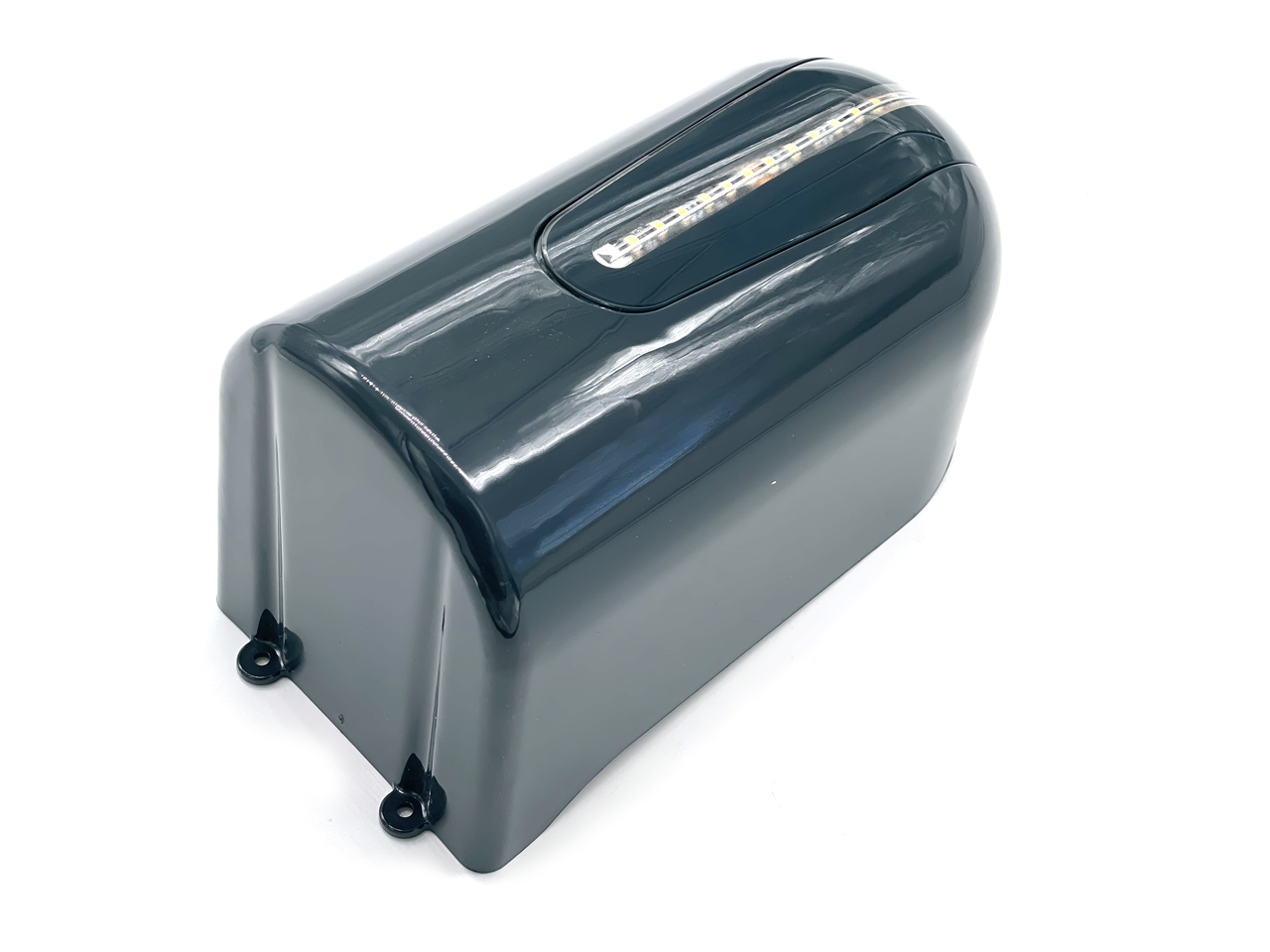

Spare REVO+ upper cover with NLS RAL7016
Spare REVO+ limit switches
Spare REVO+ main arm lower cover RAL7047
Spare REVO+ gate arm RAL7047
Spare REVO+ motor lever group RAL7047
Spare REVO 24V gear motor assembly
Spare REVO first reduction group
Spare REVO+ intermediate plastic shell RAL7047
Accessory for unlocking from the outside with metallic cord
Accessory for smaller gap opening
Accessory for slide opening
plus
Installation up to 5 cm from the ground
Easy cable passage
Compact dimensions (width 12 cm)
Simplified limit switch adjustment
Dimensions
Usage Limits
Technical Features
| 90° Opening time | s | 14-20 |
| Torque | Nm | 120 |
| Duty cycle percentage | % | 80 |
| Control unit | 14A | |
| Voltage | Vac | 230 |
| AC Voltage frequency | Hz | 50/60 |
| Nominal current | A | 0.65 |
| Nominal power | W | 115 |
| Appliance isolation class | I |
| Degree of protection | IP | 44 |
| Dimensions (W – D – H) | mm | 125 – 255 – 310 |
| Packaging dimensions (L – D – H) | mm | 290 – 400 – 470 |
| Packaging volume | m3 | 0,05452 |
| Item | kg | 13 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
| Max leaf weight | kg | 250 |
| Max leaf length | m | 2.3 |
