900KSUN5324M

900KSUN5324M

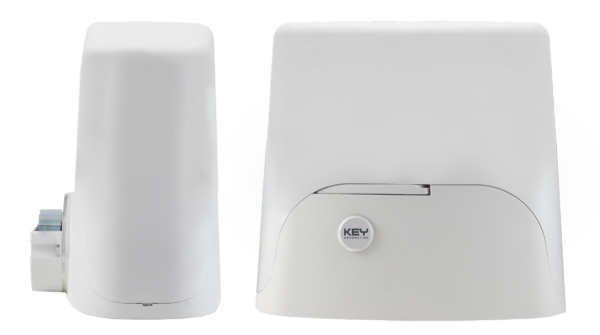

Kit SUN for sliding gates up to 500 kg, 24 Vdc motor, control unit CT10324, magnetic limit switch. Includes 2x SUB remotes and 4 m heavy duty 6 lugs gear rack.
Product code KSUN5324M
Speed 26 cm/s
Control unit CT10324
Nominal power 250 W
Max leaf weight 500 kg

Description

Kit SUN for sliding gates up to 500 kg, 24 Vdc motor, control unit CT10324, magnetic limit switch.
Includes 2x SUB remotes and 4 m heavy duty 6 lugs gear rack.

Reviews

There are no reviews yet.

Be the first to review “900KSUN5324M”

Accessories

M4 zinc coated rack 30x12 mm L=1000 mm
M4 zinc coated rack 30x8 mm L=1000 mm
M4 nylon rack L=1000 mm up to 800 Kg
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Solar power kit for the automation of road barriers and gates
Kit of 1.3 Ah lead battery and battery charger
Interface for master/slave function
Support post h. 100 cm
Support post h. 50 cm
Low voltage box
Spare thrust bearing for 24V 400 KG sliding motor
Spare M4 Z18 Gear for TURBO zinc plated
Spare motor assembly and reduction gear for SUN/TURBO 600KG 24V (ALL SERIAL NUMBERS)
Spare Z43 reduction gear for TURBO/SUN 600KG 24V (SERIALS 2423XXXXXXA OR NEWER)
Spare SUN accessories pack (Mechanical LS)
Spare limit switch assembly SUN mech 230V
Spare SUN/RAY/REVO unlock key
Spare SUN cover RAL7047 no NLS
Spare SUN/REVO unlock Rubber cap
Spare SUN unlock group
Spare SUN fixing plate with rag bolts
Spare 230V/24V 150VA transformer with thermal cut out
Spare transmission shaft assembly for SUN 600KG 24V (for serials 2423xxxxa or newer)
Spare transmission shaft + motor assembly for SUN 600KG 24V (for serials 2423xxxxa or newer)
2-channel universal receiver, fix or rolling code, 1000 codes memory
Module for automation control from smartphone, for 14A and HALO
Module for automation control from smartphone, for 14A and HALO

plus

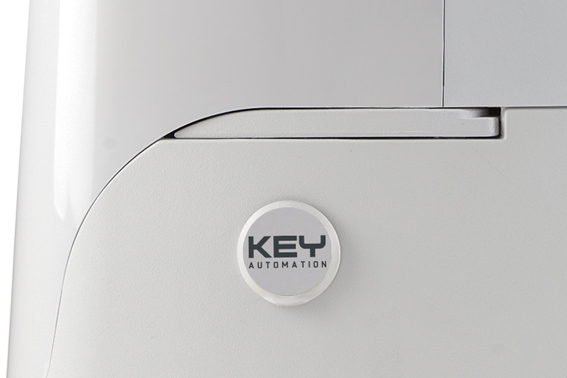

Manual unlock with trasmitter
Robust gear reduction with self-standing bearing
CT10324 control board with intergrated receiver for KUBE PRO

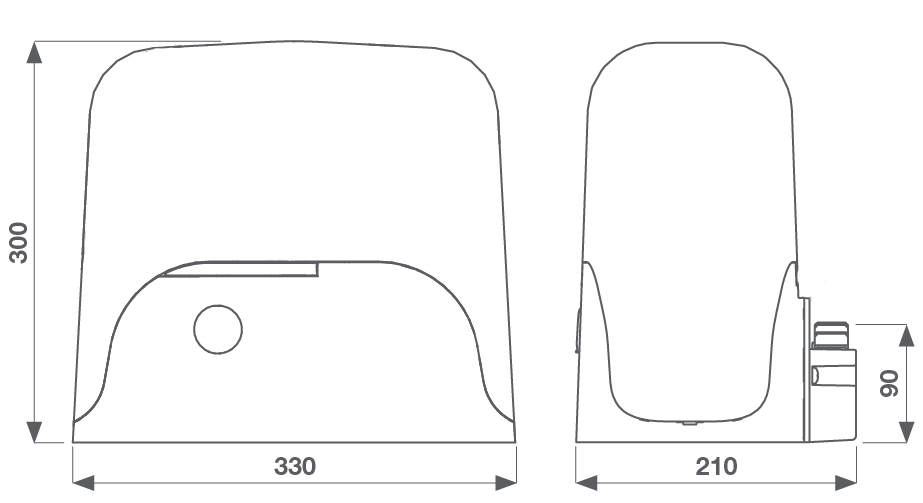

Dimensions

Technical Features

Speed cm/s 26
Torque Nm 12
Cycles/hour @20°C 40
Control unit CT10324
Voltage Vac 230
AC Voltage frequency Hz 50/60
Nominal current A 1,2
Nominal power W 250
Appliance isolation class I
Receiver frequency MHz 433,92
Storable transmitters 150
Degree of protection IP 44
Operating temperature °C -20 – +55
Power supply fuse 1,6AT 250V
Max leaf weight kg 500
Product dimensions (W – D – H) mm 330 – 210 – 300
Packaging volume m3 0,03468
Items per pallet/box 36
