900KRAY2324AU

900KRAY2324AU

Kit for dual swing gates with leaves up to 3 m, 24 Vdc motor, control unit CT20324. Includes: 1x SUB44WR & 1x SUB44R.
Product code 900RAY2224
Speed 2.6 cm/s
Control unit CT20324
Nominal power 85 W
Max leaf weight 300 kg

Description

Kit for dual swing gates with leaves up to 3 m, 24 Vdc motor, control unit CT20324. Includes: 1x SUB44WR & 1x SUB44R.

Reviews

There are no reviews yet.

Be the first to review “900KRAY2324AU”

Accessories

Adjustable front fixing bracket pair for RAY
Adjustable rear fixing bracket pair for RAY
RAY rear adaptor bracket
Closing mechanical limit switch for RAY
Rear extension for outward opening for RAY
12 V horizontal electric lock. Up to 2000kg
RAY adaptor kit for concurrent models
Unlocking cylinder with safety key for RAY and REVO+

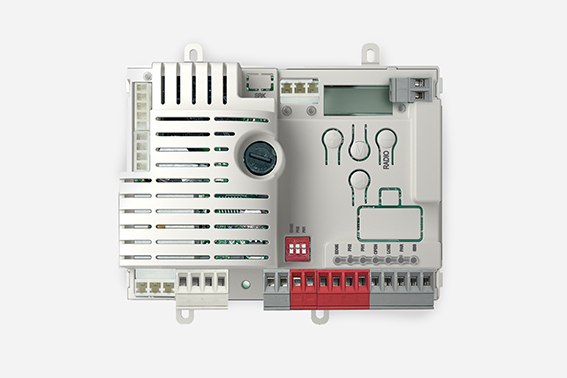

Spare 24V control unit 2 motors (built in radio)
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Kit for 24 V battery fixing
Kit of 1.3 Ah lead battery and battery charger
Support post h. 100 cm
Support post h. 50 cm
Low voltage box
Spare SUN/RAY/REVO unlock key
Spare RAY accessory box
Spare RAY25 rear motor adapter
Spare RAY back cover (RAL7047)
Spare RAY front mask without NLS (RAL7047)
Spare RAY2524/RAY2224 motor assembly
Spare RAY POM thrust pin
Spare conical gear for RAY2524/RAY2224 main screw
Spare RAY2524/RAY2224/RAY4024E lower shell group
Spare RAY2524/RAY2224 upper shell group
Spare RAY RAL7047 door group
Spare RAY Y-shapped dragging bracket assembly
Spare RAY RAL7047 door group
2-channel universal receiver, fix or rolling code, 1000 codes memory

plus

Stylish design screwless at sight
Possibility to unlock motor with transmitter
Brackets in line
CT10324 control board with intergrated receiver for KUBE PRO

Dimensions

Usage Limits

Technical Features

Speed cm/s 2,6
90° Opening time s 18-25
Force N 1500
Duty cycle percentage % 80
Control unit CT20324
Voltage Vdc 24
Nominal current A 3,5
Nominal power W 85
Appliance isolation class III
Degree of protection IP 44
Dimensions (W – D – H) mm 844 – 100 – 104
Packaging dimensions (L – D – H) mm 145 – 920 – 120
Packaging volume m3 0,01601
Item kg 8
Min operating temperature °C -20
Max operating temperature °C +55
Max leaf weight kg 300
Max leaf length m 3
